Product Model

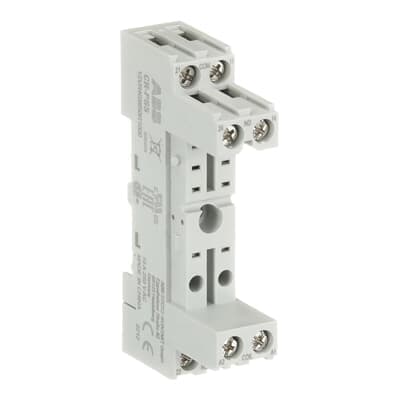

CR-PSS
Selling Points
- 1The CR-PSS socket ensures reliable electrical isolation between electronic controls and sensor/actuator levels.
- 2Designed for signal matching between PLCs, iPCs, or field bus systems and sensor/actuator levels.
- 3Suitable for high current switching in an IP67-rated relay housing.
- 4Compatible with CR-P relays featuring one or two c/o (SPDT) output contacts.
- 5Built with durable materials and screw connection terminals for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 15.5 mm | Product Net Height | 42.5 mm |
Product Net Depth / Length | 75 mm | Product Net Weight | 0.038 kg |
Function | Accessory for interface relays CR-P | Sub-Function | Socket for PCB relays |
Sub-Function 2 | Standard socket for pcb relay 1 c/o or 2 c/o | Rated Operational Voltage | 250 V |
Output | none | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 2 A | Rated Insulation Voltage (Ui) | 5 V |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Finland) | 2712758 | E-Number (Norway) | 4187348 |
E-Number (Sweden) | 4005317 | Manufacturer ID | 1SVR405650R1000 |
Specifications may be subject to change without notice
