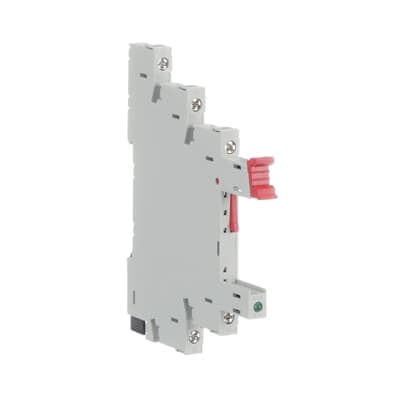

Product Model
CR-S006/024VDC1SS
Selling Points
- 1Operates in a wide temperature range (-40°C to +70°C), ensuring reliability in various environments.
- 2Screw terminals provide secure and easy connections.
- 3Compact design with dimensions: 76.4 mm height, 88.5 mm depth, and 6.3 mm width.
- 4Compliant with CE, CSA, cURus, EAC, and VDE certifications, ensuring safety and quality.
- 5Suitable for 10-piece minimum order quantity, making it a versatile accessory for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 6.3 mm | Product Net Height | 76.4 mm |
Product Net Depth / Length | 88.5 mm | Product Net Weight | 0.025 kg |
Function | Accessory for interface relays CR-S | Sub-Function | Socket |
Rated Control Supply Voltage (Us) | 6 ... 24 V DC | Rated Operational Voltage | 250 V AC |
Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP20 Terminals IP20 |
Connecting Capacity | Flexible 2.5 mm² Rigid 2.5 mm² | Tightening Torque | 0.5 N·m |
Wire Stripping Length | 7 mm | Mounting Position | 1 |
Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity UL/CSA | Flexible 14 AWG Rigid 14 AWG | Tightening Torque UL/CSA | 4.42 in·lb |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20 ... 18 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Finland) | 2712360 | E-Number (Sweden) | 4001390 |
Manufacturer ID | 1SVR405521R1100 |
Specifications may be subject to change without notice
