Product Model

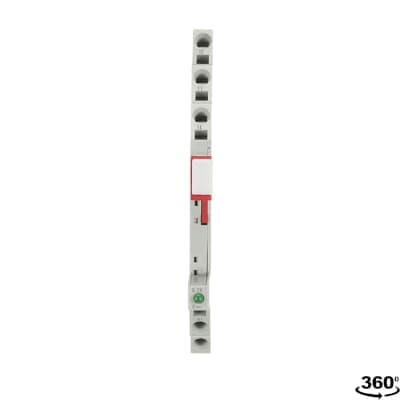

CR-S006/024VDC1SZ
Selling Points
- 1High reliability with AgSnO2/Au contact material for long-lasting performance.
- 2Versatile control supply voltages: 6-24 V DC, 2-24 V AC/DC, 48-60 V AC/DC, 110-125 V AC/DC, and 220-240 V AC/DC.
- 3Robust design with IP20 protection and operating temperature range of -40°C to +70°C.
- 4Compact dimensions: 94.7 x 6.2 x 73.2 mm, suitable for DIN rail mounting.
- 5Fast response time of 8 ms and release time of 4 ms for quick switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 6.2 mm | Product Net Height | 76.6 mm |
Product Net Depth / Length | 94.7 mm | Product Net Weight | 0.025 kg |
Function | Accessory for interface relays CR-S | Sub-Function | Socket |
Rated Control Supply Voltage (Us) | 6 ... 24 V DC | Rated Operational Voltage | 250 V AC |
Terminal Type | Spring Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP20 Terminals IP20 |
Connecting Capacity | Flexible 2.5 mm² Rigid 2.5 mm² | Tightening Torque | 0.5 N·m |
Wire Stripping Length | 7 mm | Mounting Position | 1 |
Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity UL/CSA | Flexible 14 AWG Rigid 14 AWG | Tightening Torque UL/CSA | 4.42 in·lb |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 20 ... 14 AWG Rigid 2x 20-14 AWG Stranded 20 ... 14 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Finland) | 2712361 | E-Number (Sweden) | 4001391 |
Manufacturer ID | 1SVR405521R1200 |
Specifications may be subject to change without notice
