Product Model

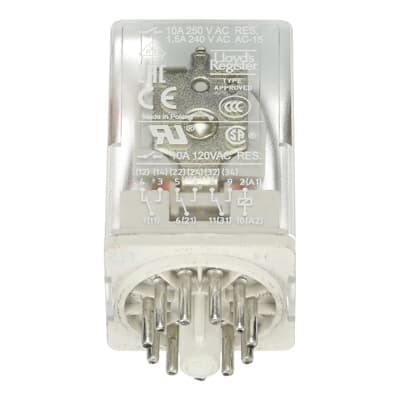

CR-U048DC3L
Selling Points
- 1Works with 48V DC control supply voltage.
- 2Supports 10A load current rating.
- 3Facilitates easy manual actuation and testing.
- 4Robust circular pin terminals for repetitive-use applications.
- 5Includes an integrated LED for visual indication of energization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 35 mm | Product Net Height | 54.4 mm |
Product Net Depth / Length | 35 mm | Product Net Weight | 0.083 kg |
Function | Pluggable universal interface relay CR-U | Sub-Function | Relay with built in LED |
Rated Control Supply Voltage (Us) | 48 V DC | Rated Operational Voltage | 250 V AC |
Output | 3 c/o (SPDT) contacts | Output Signal | 250 V / 10 A |
Terminal Type | Pin | Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
Degree of Protection | IP40 | Mounting Position | 1 |
Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
Pilot Duty UL/CSA | B300 | Flammability According to UL94 | HB |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
E-Number (Finland) | 2712778 | E-Number (Norway) | 4187486 |
Manufacturer ID | 1SVR405622R6100 |
