Product Model

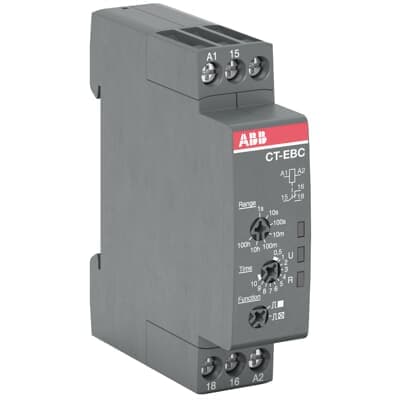

CT-EBC.12
Selling Points
- 1Operates with 24-48 V DC and 24-240 V AC.
- 2Offers 7 time ranges from 0.05 s to 100 h.
- 3Features a 1 c/o (SPDT) output rated at 250 V / 4 A.
- 4Meets IP50 housing and IP20 terminal protection standards.
- 5Compatible with DIN rail mounting and flexible wiring options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 17.5 mm | Product Net Height | 70 mm |
Product Net Depth / Length | 63 mm | Product Net Weight | 0.053 kg |
Timer Relay Type | Flasher Starting with OFF Flasher Starting with ON | Time Range | 0.05 s ... 100 h |
Rated Control Supply Voltage (Us) | 24 ... 240 V AC 24 ... 48 V DC | Rated Operational Voltage | Auxiliary Circuit 250 V |
Rated Frequency (f) | 50 / 60 Hz DC | Output | 1 c/o (SPDT) contact |
Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 12 V 100 mA |
Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 1.5 mm² | Tightening Torque | 0.5 ... 0.8 N·m |
Wire Stripping Length | 7 mm | Recommended Screw Driver | 0.8 x 4 Pozidriv 1 |
Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 508 | Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
Contact Rating UL/CSA | B300 | Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 1x 20-12 AWG Rigid 2x 20-16 AWG |
Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb | Pilot Duty UL/CSA | B300 |
Flammability According to UL94 | V-2 | Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
ETIM 7 | EC001439 - Timer relay | ETIM 8 | EC001439 - Timer relay |
ETIM 9 | EC001439 - Timer relay | eClass | V11.0 : 27371605 |
UNSPSC | 39121519 | E-Number (Finland) | 2712892 |
E-Number (Norway) | 4189324 | Manufacturer ID | 1SVR508150R0000 |
Specifications may be subject to change without notice
