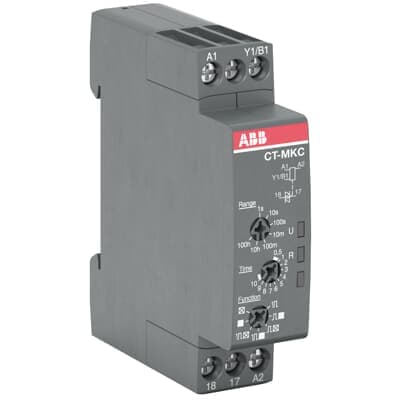

Product Model
CT-MKC.31
Selling Points
- 1Versatile Timing Functions: Provides 7 timing functions with 7 time ranges from 0.05 s to 100 h.
- 2Wide Voltage Compatibility: Operates with a rated control supply voltage of 12 - 240 V AC / DC.
- 3Solid-State Output: Features a solid-state output rated at 250 V / 1 A.
- 4Shock and Vibration Resistant: Designed to withstand shock and vibration, making it suitable for various environments.
- 5Durable Construction: Built with a housing IP50 and terminals IP20, ensuring reliable operation in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 17.5 mm | Product Net Height | 70 mm |
Product Net Depth / Length | 63 mm | Product Net Weight | 0.053 kg |
Timer Relay Type | Flasher Starting with OFF Flasher Starting with ON Impulse OFF Impulse ON OFF-Delay ON-Delay Pulse Former | Time Range | 0.05 s ... 100 h |
Rated Control Supply Voltage (Us) | 12 ... 240 V AC/DC | Rated Operational Voltage | Auxiliary Circuit 250 V |
Rated Frequency (f) | 50 / 60 Hz DC | Output | solid-state output |
Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 1 A |
Rated Operational Current AC-15 (Ie) | (230 V) 0.2 A | Rated Operational Current DC-12 (Ie) | (24 V) 1 A |
Rated Operational Current DC-13 (Ie) | (24 V) 1 A | Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V | Degree of Protection | Housing IP50 Terminals IP20 |
Overvoltage Category | III | Pollution Degree | 3 |
Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A | Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 1.5 mm² |
Tightening Torque | 0.5 ... 0.8 N·m | Wire Stripping Length | 7 mm |
Recommended Screw Driver | 0.8 x 4 Pozidriv 1 | Mounting Position | 1 ... 6 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 60947-5-1 |
Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 1x 20-12 AWG Rigid 2x 20-16 AWG | Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
Flammability According to UL94 | V-2 | Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
ETIM 7 | EC001439 - Timer relay | ETIM 8 | EC001439 - Timer relay |
ETIM 9 | EC001439 - Timer relay | eClass | V11.0 : 27371605 |
UNSPSC | 39121519 | E-Number (Finland) | 2712893 |
E-Number (Norway) | 4189315 | Manufacturer ID | 1SVR508010R1300 |
Specifications may be subject to change without notice
