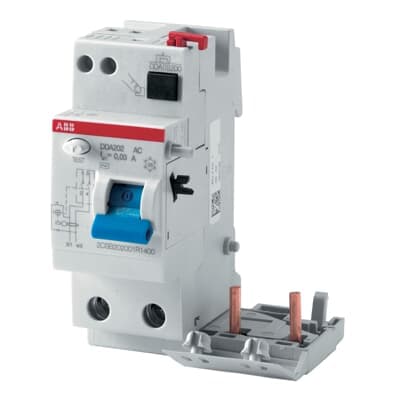

ABB DDA202 A-40/0.1 Residual Current Device Block

Selling Points

1Advanced Earth Fault Protection: Safeguards against sinusoidal alternating earth fault currents.
2Indirect Contact Protection: Ensures safety by preventing indirect contact hazards.
3Direct Contact Protection: Additional protection against direct contacts when set to 30mA sensitivity.
4Compact Design: Suitable for various applications with a compact and versatile design.
5Compliance with Standards: Meets IEC/EN 61009-1 and IEC/EN 61009-2-1 standards for reliable operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Standards	IEC/EN 61009 Ann. G	Type of Residual Current	Type A
Rated Voltage (Ur)	230/400 V	Rated Operational Voltage	230 V
Rated Insulation Voltage (Ui)	500 V	Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Current (In)	40 A	Rated Residual Current	100 mA
Leakage Current Type	A	Rated Frequency (f)	50 â¦ 60 Hz
Power Loss	3.2 W	Power Supply Connection	Arbitrary
Electrical Endurance	10000 cycle	Number of Poles	2
Operating Characteristic	Instantaneous	Connecting Capacity	Rigid 25 ... 25 mmÂ² Flexible 25 ... 25 mmÂ²
Ambient Temperature	-25...55 Â°C	Ambient Air Temperature	Operation -25...55 Â°C
Degree of Protection	IP2X	Resistance to Vibrations	20 Cycles with Load 0.8 In: 1g or 1mm 50 â¦ 150 â¦ 5 Hz
Resistance to Shock acc. to IEC 60068-2-27	25g 2 shocks 13 ms	Environmental Information	Refer to RoHS
Short-Circuit Current Rating (SCCR)	0.1 ... 0.1 A	Product Net Width	70 mm
Product Net Height	93 mm	Product Net Depth / Length	76 mm
Product Net Weight	210 g	ETIM 8	EC002297 - Residual current circuit breaker (RCCB) module
ETIM 9	EC002297 - Residual current circuit breaker (RCCB) module	WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Consumer	CN8	85363030
eClass	V11.0 : 27142210	Object Classification Code	F
Manufacturer ID	2CSB202101R2400

Specifications may be subject to change without notice
