Product Model

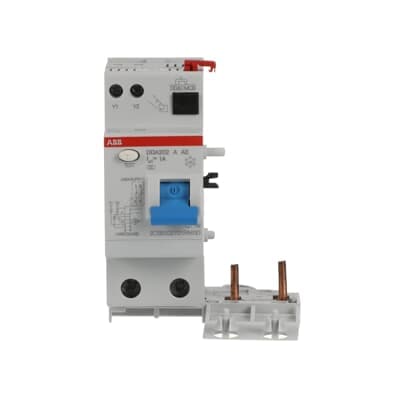

DDA202 A-63/1 AE
Selling Points
- 1Advanced Earth Fault Protection: Provides comprehensive protection against sinusoidal alternating and direct pulsating earth fault currents.
- 2Toggle Actuation: Easy-to-use toggle actuation for simple operation in various environments.
- 3Remote Tripping Capabilities: Equipped with two additional terminals for remote tripping in positive safety conditions.
- 4Industrial-Grade Design: Designed to meet IEC/EN 61009 standards, ensuring high reliability and performance in industrial settings.
- 5Versatile Applications: Suitable for commercial, industrial, and naval applications, offering flexibility in different operational environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type A |
Application | For emergency stop | Rated Voltage (Ur) | 230/400 V |
Rated Operational Voltage | 230 V | Rated Insulation Voltage (Ui) | 500 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Rated Current (In) | 63 A |
Rated Residual Current | 1000 mA | Leakage Current Type | A |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | 5 W |
Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
Number of Poles | 2 | Operating Characteristic | Instantaneous (AE for Emergency Stop) |
Options Provided | For emergency stop | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | 2CSC427001K2701 |
Short-Circuit Current Rating (SCCR) | 1...1 A | Product Net Width | 70 mm |
Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
Product Net Weight | 210 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB202701R5630 |
