Product Model

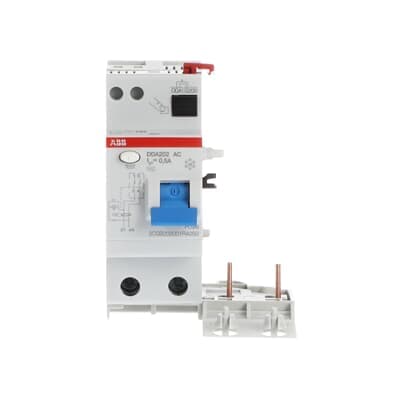

DDA202 AC-25/0.5
Selling Points
- 1Advanced Earth Fault Current Protection: Safeguards against sinusoidal alternating and direct pulsating earth fault currents.
- 2Comprehensive Contact Protection: Provides protection against indirect contacts and additional protection against direct contacts with 30 mA sensitivity.
- 3High-Quality Construction: Built with durable materials for long-lasting performance in various environmental conditions.
- 4Easy Installation: Designed for straightforward installation with clear instructions and compatible with both cables and busbars.
- 5Enhanced Safety Features: Includes failsafe bi-directional cylinder-lift terminals at top and bottom for shock protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type AC |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 25 A | Rated Residual Current | 500 mA |
Leakage Current Type | AC | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 2 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 2 |
Operating Characteristic | Instantaneous | Options Provided | - |
Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Ambient Temperature | -25...55 °C |
Ambient Air Temperature | Operation -25...55 °C | Degree of Protection | IP2X |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 0.5 ... 0.5 A |
Product Net Width | 70 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | Product Net Weight | 210 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB202001R4250 |
Specifications may be subject to change without notice
