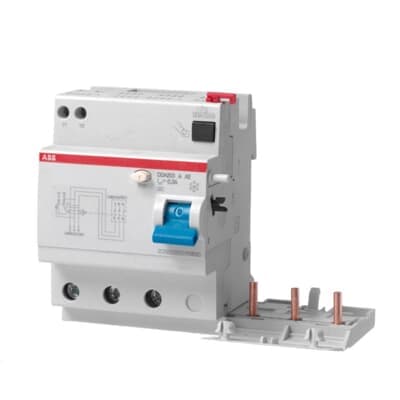

Product Model
DDA203 A-63/0.3 AE
Selling Points
- 1Safeguards against sinusoidal alternating earth fault currents and indirect contacts.
- 2Additional protection against direct contacts with a sensitivity of 30 mA.
- 3Measures 70 x 69 x 85 mm, suitable for DIN rail mounting.
- 4Supports up to 63 A, making it versatile for various electrical applications.
- 5Meets IEC/EN 61009, IEC/EN 60947-2, and IEC/EN 60068-2 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type A |
Application | For emergency stop | Rated Voltage (Ur) | 230/400 V |
Rated Operational Voltage | 400 V | Rated Insulation Voltage (Ui) | 500 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Rated Current (In) | 63 A |
Rated Residual Current | 300 mA | Leakage Current Type | A |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | 7.6 W |
Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
Number of Poles | 3 | Operating Characteristic | Instantaneous (AE for Emergency Stop) |
Options Provided | For emergency stop | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | 2CSC427001K2701 |
Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A | Product Net Width | 122 mm |
Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
Product Net Weight | 311 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB203701R3630 |
Specifications may be subject to change without notice
