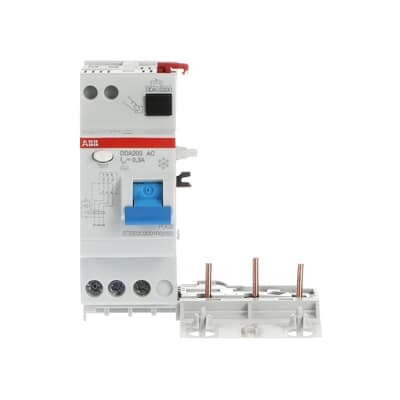

Product Model
DDA203 AC-25/0.3
Selling Points
- 1Advanced Protection: Provides protection against sinusoidal alternating earth fault currents and indirect contacts.
- 2Versatile Application: Suitable for residential, commercial, and industrial settings.
- 3High Sensitivity: Trips at 300 mA for enhanced safety.
- 4Compact Design: Compact dimensions (87 mm x 93 mm x 76 mm) for easy installation.
- 5Compliance Standards: Meets IEC/EN 61009 Ann. G standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type AC |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230/400 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 25 A | Rated Residual Current | 300 mA |
Leakage Current Type | AC | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 3 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 3 |
Operating Characteristic | Instantaneous | Options Provided | - |
Connecting Capacity | Rigid 16 ... 16 mm² Flexible 16 ... 16 mm² | Ambient Temperature | -25...55 °C |
Ambient Air Temperature | Operation -25...55 °C | Degree of Protection | IP2X |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A |
Product Net Width | 87 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | Product Net Weight | 158 g |
Dimension Diagram | 9AKK106930A3987 | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB203001R3250 |
Specifications may be subject to change without notice
