Product Model

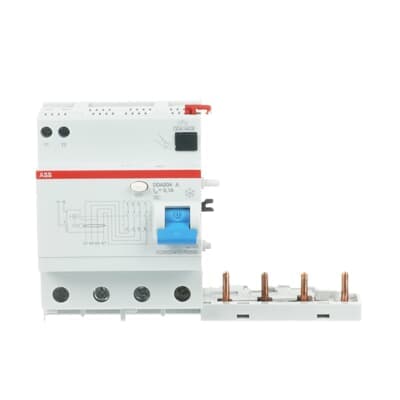

DDA204 A-63/0.1
Selling Points
- 1Advanced Earth Fault Protection: Safeguards against sinusoidal alternating earth fault currents and indirect contacts.
- 2Instantaneous Operating Characteristic: Provides fast and reliable protection with high immunity.
- 3High Current Rating: Rated at 63 A, suitable for a wide range of applications.
- 4Compact Design: Dimensions of 70 x 69 x 85 mm, easy to integrate into various electrical systems.
- 5Compliance with International Standards: Meets IEC/EN 61009 and IEC/EN 60947-2 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type A |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230/400 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 63 A | Rated Residual Current | 100 mA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 7.6 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 4 |
Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
Short-Circuit Current Rating (SCCR) | 0.1 ... 0.1 A | Product Net Width | 140 mm |
Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
Product Net Weight | 311 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB204101R2630 |
Specifications may be subject to change without notice
