Product Model

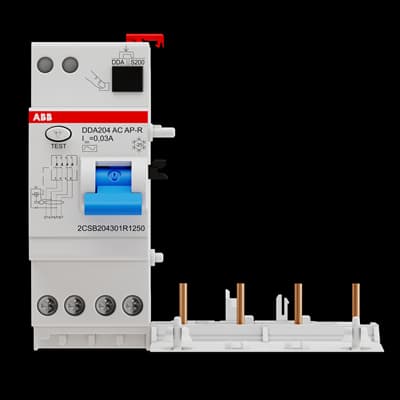

DDA204 AC-25/0.03 AP-R
Selling Points
- 1Advanced Earth Fault Protection: Provides protection against sinusoidal alternating earth fault currents and indirect contacts.
- 2Compliant with IEC/EN 61009: Meets international standards for electrical safety and reliability.
- 3Compact Design: Suitable for assembly with MCBs S200 series and S300P, ideal for residential and commercial use.
- 4High Sensitivity: Offers residual rated current (IΔn) of 30 mA for enhanced safety.
- 5Durable Construction: Built with failsafe bi-directional cylinder-lift terminals for secure and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61009 Ann. G | Type of Residual Current | Type AC |
Rated Operational Voltage | 230/400 V | Rated Current (In) | 25 A |
Rated Residual Current | 30 mA | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 3 W | Number of Poles | 4 |
Operating Characteristic | Instantaneous (APR High Immunity) | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms | Environmental Information | document not needed |
Product Net Width | 105 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | Product Net Weight | 0.290 kg |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB204301R1250 |
Specifications may be subject to change without notice
