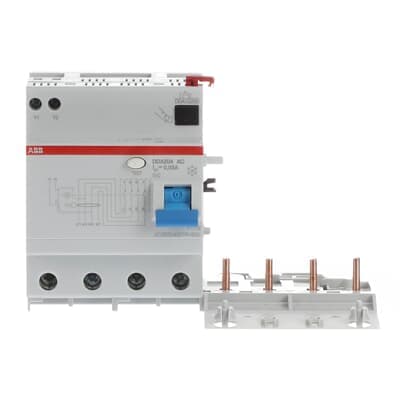

Product Model
DDA204 AC-63/0.03
Selling Points
- 1Advanced Earth Leakage Protection: Safeguards against indirect and direct contacts with a tripping current of 30mA.
- 2High Rated Current: Handles up to 63A, making it suitable for various electrical installations.
- 3Compact Design: Easy to integrate with MCBs S200 series and S300P for seamless assembly.
- 4Compliance with Standards: Meets IEC/EN 61009 and IEC/EN 61008-1 standards for reliability and safety.
- 5Versatile Applications: Suitable for residential, commercial, and industrial settings, ensuring comprehensive protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type AC |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230/400 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 63 A | Rated Residual Current | 30 mA |
Leakage Current Type | AC | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 7.6 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 4 |
Operating Characteristic | Instantaneous | Options Provided | - |
Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Ambient Temperature | -25...55 °C |
Ambient Air Temperature | Operation -25...55 °C | Degree of Protection | IP2X |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A |
Product Net Width | 140 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | Product Net Weight | 311 g |
Dimension Diagram | 9AKK106930A3988 | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB204001R1630 |
Specifications may be subject to change without notice
