Product Model

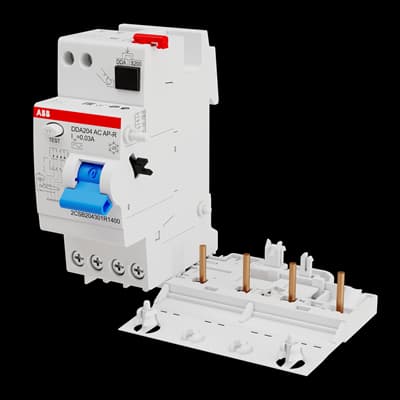

DDA204 AC-63/0.03AP-R
Selling Points
- 1Comprehensive Protection: Assures protection against sinusoidal alternating earth fault currents and indirect contacts.
- 2Versatile Applications: Suitable for residential, commercial, and industrial settings.
- 3High Sensitivity: Additional protection against direct contacts with a sensitivity of 30 mA.
- 4Standard Compliance: Meets IEC/EN 61009 standards for reliability and safety.
- 5Compact Design: Compact dimensions (0.140 m net width, 0.093 m net height) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Operational Voltage | 230/400 V | Rated Frequency (f) | 50 ⦠60 Hz |
Operating Characteristic | Instantaneous (APR High Immunity) | Number of Batteries | 0 |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Product Net Width | 140 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB204301R1630 |
Specifications may be subject to change without notice
