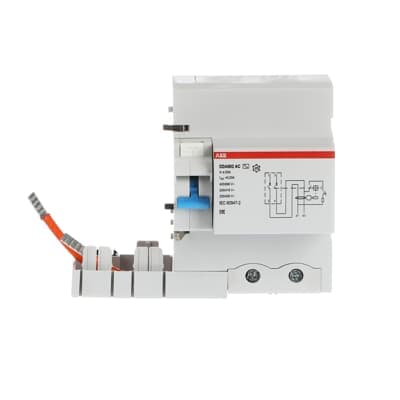

Product Model
DDA802AC-63/0.03
Selling Points
- 1Provides robust earth fault protection to safeguard people and installations.
- 2Supports up to 63A current, ensuring reliable operation in demanding applications.
- 3Compatible with 230/400V AC, making it suitable for various electrical systems.
- 4Dimensions of 81 x 82.3 x 108.2 mm allow for easy installation in DIN rail mounts.
- 5Meets IEC/EN 61009, IEC/EN 60947-2, and IEC/EN 60068-2-30 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type AC |
Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 230 V AC 240 V AC 400 V AC |
Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 63 A |
Rated Residual Current | 30 mA | Maximum Surge Current | 0.25 kA |
Leakage Current Type | AC | Rated Frequency (f) | 50/60 Hz |
Power Loss | 9 W | Number of Poles | 2 |
Operating Characteristic | Instantaneous | Options Provided | - |
Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² | Ambient Temperature | -25...60 °C |
Ambient Air Temperature | Operation -25...60 °C | Degree of Protection | IP2X |
Environmental Information | document not needed | Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A |
Width in Number of Modular Spacings | 4.5 | Product Net Width | 81 mm |
Product Net Height | 108.2 mm | Product Net Depth / Length | 82.3 mm |
Product Net Weight | 300 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2CSB802001R1630 |
Specifications may be subject to change without notice
