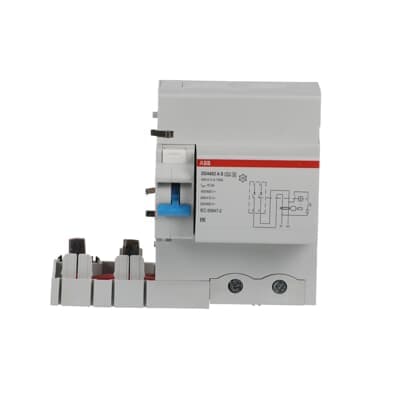

Product Model
DDA802 A S-100/0.3
Selling Points
- 1Protects against earth fault currents with an intentional tripping delay, ensuring selectivity with downstream instantaneous devices.
- 2Suitable for commercial and industrial applications, providing reliable protection against sinusoidal alternating and direct pulsating earth fault currents.
- 3Meets the standards of IEC/EN 60947-2 Ann. B, ensuring high-quality and safety compliance.
- 4Rated current of 100 A and rated residual current of 300 mA, providing robust protection.
- 5Compact dimensions (81x108.2x82.3 mm) make it easy to integrate into various electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 230 V AC 240 V AC 400 V AC |
Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 100 A |
Rated Residual Current | 300 mA | Maximum Surge Current | 5 kA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 7 W | Number of Poles | 2 |
Operating Characteristic | Selective | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
Degree of Protection | IP2X | Environmental Information | refer to RoHS information |
Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A | Width in Number of Modular Spacings | 4.5 |
Product Net Width | 81 mm | Product Net Height | 108.2 mm |
Product Net Depth / Length | 82.3 mm | Product Net Weight | 300 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB802201R3000 |
