Product Model

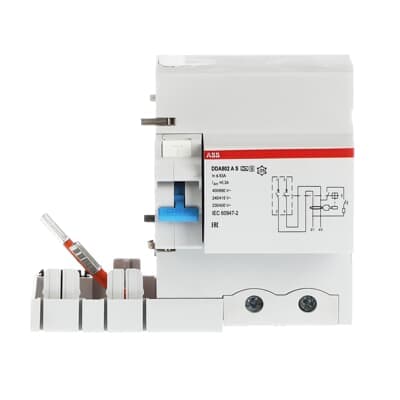

DDA802 A S-63/0.3
Selling Points
- 1Advanced Fault Protection: Provides reliable protection against electrical faults with a nominal current of 63 A and a rated fault current of 0.3 A.
- 2High Surge Capacity: Equipped with a surge current capacity of 5 kA, ensuring robust performance under transient conditions.
- 3Anti-Nuisance Tripping: Features an anti-nuisance tripping version to minimize false tripping, ensuring continuous operation.
- 4Wide Operating Range: Operates within a wide ambient temperature range of -25°C to 60°C, making it suitable for various environments.
- 5Compliance with Standards: Meets international standards including IEC/EN 60947-2, ensuring global compatibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 230 V AC 240 V AC 400 V AC |
Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 63 A |
Rated Residual Current | 300 mA | Maximum Surge Current | 5 kA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 9 W | Number of Poles | 2 |
Operating Characteristic | Selective | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
Degree of Protection | IP2X | Environmental Information | document not needed |
Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A | Width in Number of Modular Spacings | 4.5 |
Product Net Width | 81 mm | Product Net Height | 108.2 mm |
Product Net Depth / Length | 82.3 mm | Product Net Weight | 300 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB802201R3630 |
Specifications may be subject to change without notice
