Product Model

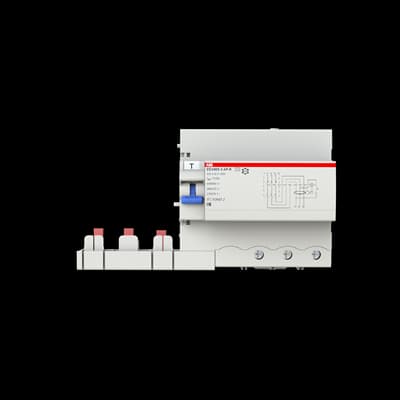

DDA803A-100/0.03 APR
Selling Points
- 13 kA surge current capacity for robust protection against electrical faults.
- 2Zero delay time (0 ms) for immediate response to fault currents.
- 3Designed to minimize false tripping, ensuring reliable operation.
- 4Suitable for 230-400 V nominal voltage and 50/60 Hz frequency.
- 5Meets IEC/EN 61008 standards, providing comprehensive protection against indirect and direct contacts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 400 V AC 415 V AC 690 V AC |
Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 100 A |
Rated Residual Current | 30 mA | Maximum Surge Current | 3 kA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 10.5 W | Number of Poles | 3 |
Operating Characteristic | Instantaneous (APR High Immunity) | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
Degree of Protection | IP2X | Environmental Information | refer to RoHS information |
Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Width in Number of Modular Spacings | 6.5 |
Product Net Width | 117 mm | Product Net Height | 108.2 mm |
Product Net Depth / Length | 82.3 mm | Product Net Weight | 400 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB803401R1000 |
Specifications may be subject to change without notice
