Product Model

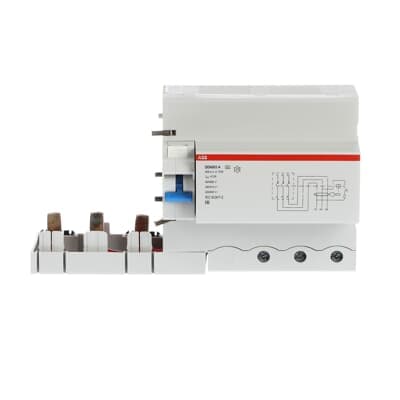

DDA803 A-100/0.5
Selling Points
- 1Advanced Earth Fault Protection: Provides protection against sinusoidal alternating and direct pulsating earth fault currents.
- 2Selective Tripping: Allows for selective tripping with downstream instantaneous devices, ensuring precise fault detection.
- 3High Surge Current Capacity: Withstands surge currents up to 0.25 kA, ensuring reliability in high-voltage environments.
- 4Wide Operating Temperature Range: Operates effectively in ambient temperatures from -25°C to 60°C.
- 5Compliant with IEC/EN Standards: Meets IEC/EN 60947-2 Ann. B standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 400 V AC 415 V AC 690 V AC |
Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 100 A |
Rated Residual Current | 500 mA | Maximum Surge Current | 0.25 kA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 10.5 W | Number of Poles | 3 |
Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
Degree of Protection | IP2X | Environmental Information | refer to RoHS information |
Short-Circuit Current Rating (SCCR) | 0.5 ... 0.5 A | Width in Number of Modular Spacings | 6.5 |
Product Net Width | 117 mm | Product Net Height | 108.2 mm |
Product Net Depth / Length | 82.3 mm | Product Net Weight | 400 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB803101R4000 |
Specifications may be subject to change without notice
