Product Model

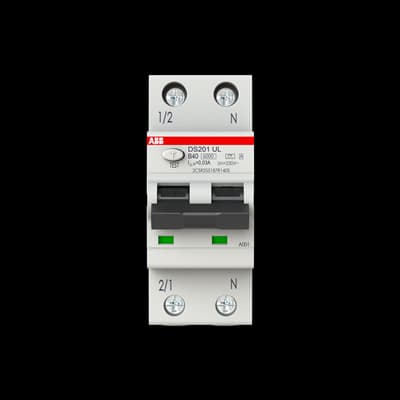

DS201 B40 A30 UL
Selling Points
- 1Advanced Protection: Safeguards against overload and short-circuit currents.
- 2High Sensitivity: Detects earth fault currents with a sensitivity of 30 mA.
- 3Compact Design: Compact dimensions (0.035 m x 0.085 m x 0.069 m) for easy installation.
- 4Compliance Standards: Meets IEC 61009-1, IEC 61009-2-1, EN 61009-1, and EN 61009-2-1 standards.
- 5Durable Construction: Built with toggle actuator and IP40 housing for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61009-1 IEC 61009-2-1 UL 1053 UL 1077 CSA C22.2 N0. 235 | Tripping Characteristic | B |
Type of Residual Current | Type A | Rated Operational Voltage | acc. to IEC 60898-1 240 V |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V | Test Voltage (Ut) | 110â¦277 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2 kV |
Rated Current Sensitivity | 0.03 A | Rated Current (In) | 40 A |
Rated Residual Operating Current (IÎn) | 6000 A | Rated Residual Current | 30 mA |
Rated Short-Circuit Capacity | 6 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | Average per Pole 4.6 W Phase Pole 5.0 W Neutral Pole 4.1 W Total 9.1 W | Power Supply Connection | Arbitrary |
Contact Position Indication | Red ON / Green OFF | Energy Limiting Class | 3 |
Electrical Endurance | 10000 cycle | Mechanical Endurance | 20000 cycle |
Number of Protected Poles | 1 | Number of Poles | 2 |
Number of Modular Spacings per DIN Rail | 2 | Fault Indication | Blue flag on toggle |
Operating Characteristic | Instantaneous | Overvoltage Category | III |
Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device | Mounting Type | DIN-Rail |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Mounting Position | Any |
Accessories Available | Yes | Number of Batteries | 0 |
Connecting Capacity | Busbar 10/10 mm² Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Wire Stripping Length | 12 mm |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ⦠55 °C |
Reference Ambient Air Temperature | 30 °C | Degree of Protection | IP20 IP40 |
Pollution Degree | 2 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 5 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms |
Width in Number of Modular Spacings | 2 | Product Net Width | 35 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
Product Net Weight | 200 g | Built-In Depth (t2) | 69 mm |
ETIM 8 | EC000905 - Earth leakage circuit breaker | ETIM 9 | EC000905 - Earth leakage circuit breaker |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363010 | Object Classification Code | Q |
Manufacturer ID | 2CSR255187R1405 |
Specifications may be subject to change without notice
