Product Model

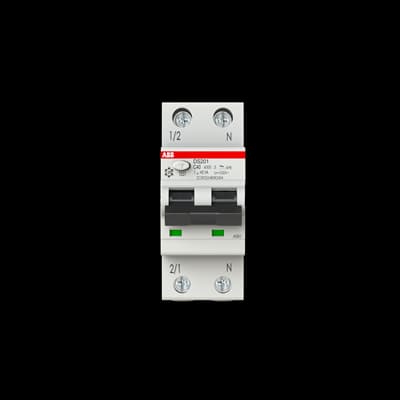

DS201 C40 APR100
Selling Points
- 1Enhanced Safety: Provides comprehensive protection against overload, short-circuit, and earth fault currents.
- 2High Immunity: Resistant to unwanted trippings, ensuring continuous service and optimal safety.
- 3Versatile Application: Suitable for single-phase circuits with direct and indirect contact protection.
- 4High Performance: Meets IEC/EN 61009-1 and IEC/EN 61009-2-1 standards for reliable operation.
- 5Durable Design: Built with a failsafe bi-directional cylinder-lift terminal for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009-1, IEC/EN 61009-2-1 | Tripping Characteristic | C |
Type of Residual Current | Type A | Rated Operational Voltage | acc. to IEC 60898-1 240 V |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V | Test Voltage (Ut) | 110 ... 264 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2 kV |
Input Voltage Type | AC | Rated Current (In) | 40 A |
Rated Residual Current | 100 mA | Rated Short-Circuit Capacity | 6 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA | Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A IEC 61009-1 4500 A |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 6 kA | Maximum Surge Current | 3 kA |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | Average per Pole 4.6 W Phase Pole 5.0 W Neutral Pole 4.1 W Total 9.1 W |
Power Supply Connection | Arbitrary | Contact Position Indication | Red ON / Green OFF |
Energy Limiting Class | 3 | Electrical Endurance | 10000 cycle |
Mechanical Endurance | 20000 cycle | Number of Protected Poles | 1 |
Number of Poles | 2 | Number of Modular Spacings per DIN Rail | 2 |
Fault Indication | Blue flag on toggle | Operating Characteristic | Instantaneous (APR High Immunity) |
Overvoltage Category | III | Position of Neutral Terminals | Right |
Tightening Torque | 2.8 N·m | Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device |
Actuator Type | Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions | Earthing Switch Type | Undelayed |
Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Mounting Position | Any |
Accessories Available | Yes | Surge Immunity acc. to IEC 61000-4-5 | 3000 A |
Number of Batteries | 0 | Connecting Capacity | Busbar 10 ... 10 mm² Stranded 0.75 ... 25 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 16 mm² |
Rated Cross-Section | 1 - Solid-Core 0.75 ⦠25 mm² 4 - Multi-Wired 0.75 ⦠16 mm² | Wire Stripping Length | 12 mm |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ⦠55 °C |
Reference Ambient Air Temperature | 30 °C | Degree of Protection | IP20 IP40 |
Pollution Degree | 2 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | 2CSC422002K2701 | Width in Number of Modular Spacings | 2 |
Product Net Width | 35 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 200 g |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000905 - Earth leakage circuit breaker |
ETIM 9 | EC000905 - Earth leakage circuit breaker | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
UNSPSC | 39121601 | eClass | V11.0 : 27142207 |
IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
Manufacturer ID | 2CSR255480R2404 |
Specifications may be subject to change without notice
