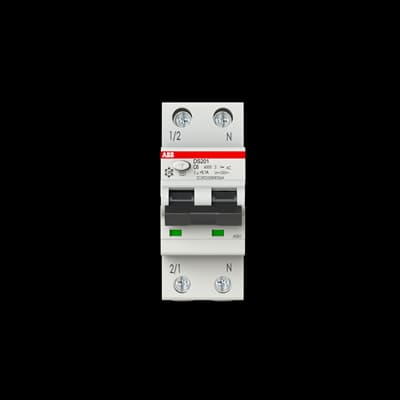

Product Model
DS201 C6 AC100
Selling Points
- 1Advanced Overload Protection: Safeguards against overload and short-circuit currents with a rated short-circuit breaking capacity of 10 kA.
- 2Residual Current Protection: Provides protection against indirect contacts and additional protection against direct contacts with a sensitivity of 100 mA.
- 3Compact Design: Designed for two-module width, ideal for space-saving installations in residential and commercial environments.
- 4High Insulation Voltage: Rated insulation voltage of 500 V ensures reliable operation under various conditions.
- 5Compliance with International Standards: Meets IEC/EN 61009-1 and IEC/EN 61009-2-1 standards for enhanced safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009-1, IEC/EN 61009-2-1 | Tripping Characteristic | C |
Type of Residual Current | Type AC | Rated Operational Voltage | acc. to IEC 60898-1 240 V |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V | Test Voltage (Ut) | 110 ... 264 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2 kV |
Input Voltage Type | AC | Rated Current (In) | 6 A |
Rated Residual Current | 100 mA | Rated Short-Circuit Capacity | 6 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA | Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A IEC 61009-1 6000 A |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
Maximum Surge Current | 0 kA | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | Average per Pole 1.3 W Phase Pole 2.4 W Neutral Pole 0.2 W Total 2.6 W | Power Supply Connection | Arbitrary |
Contact Position Indication | Red ON / Green OFF | Energy Limiting Class | 3 |
Electrical Endurance | 10000 cycle | Mechanical Endurance | 20000 cycle |
Number of Protected Poles | 1 | Number of Poles | 2 |
Number of Modular Spacings per DIN Rail | 2 | Fault Indication | Blue flag on toggle |
Operating Characteristic | Instantaneous | Overvoltage Category | III |
Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device | Actuator Type | Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions |
Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Mounting Position | Any |
Accessories Available | Yes | Number of Batteries | 0 |
Connecting Capacity | Busbar 10 ... 10 mm² Stranded 0.75 ... 25 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 16 mm² | Wire Stripping Length | 12 mm |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ⦠55 °C |
Reference Ambient Air Temperature | 30 °C | Degree of Protection | IP20 IP40 |
Pollution Degree | 2 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | 2CSC422002K2701 | Width in Number of Modular Spacings | 2 |
Product Net Width | 35 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 200 g |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000905 - Earth leakage circuit breaker |
ETIM 9 | EC000905 - Earth leakage circuit breaker | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363010 |
eClass | V11.0 : 27142207 | Object Classification Code | F |
Manufacturer ID | 2CSR255080R2064 |
Specifications may be subject to change without notice
