Product Model

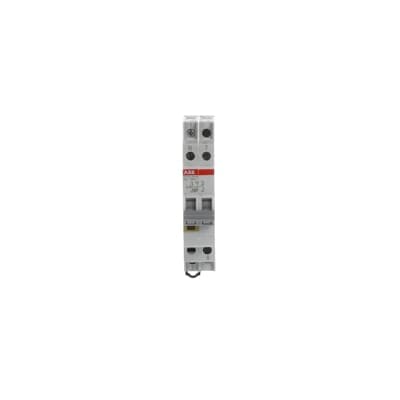

E211X-16-20
Selling Points
- 1High reliability and efficiency in on/off switching applications.
- 2Meets DIN EN 60669-1 and VDE 0632 Part 1 standards for safety.
- 3Available in various contact configurations (1 NO, 2 NO, 3 NO, 4 NO).
- 4Suitable for 16 A rated currents at 250/400 V AC.
- 5Compact design with module widths of 0.5/1 inch.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60669-1 EN60669-2-4 IEC/EN60947-3 IEC60068-2-2 IEC60068-2-1 IEC60068-2-30 VDE0632-1 VDE0632-2-4 UL508 | Rated Voltage (Ur) | Minimum 400 V |
Rated Operational Voltage | acc. to EN 250/400 V AC acc. to UL 508 240 V AC | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Auxiliary Voltage AC/DC | LED Indicator 115...250 V AC | Input Voltage Type | AC |
Rated Current (In) | 16 A | Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
Rated Frequency (f) | 50/60 Hz | Minimum Switching Capacity | 24 V AC 25 mA |
Power Loss | 1 W | Power Watt | 0.18 W |
Contact Position Indication | ON / OFF | Number of Contacts NO | 2 |
Number of Main Contacts NC | 0 | Number of Main Contacts NO | 2 |
Number of Auxiliary Contacts CO (SPDT) | 0 | Number of Poles | 2P |
Number of LEDs | 1 | Tightening Torque | 1.2-1.5 N·m |
Utilization Category | Switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A) Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A) | Lamp Type | LED |
Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
Remarks | Sealable in the On and Off positions | Color | Yellow |
Cover Color | Grey | Control Element Color | Grey |
Lamp Color | Yellow | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
Rated Operational Current AC-22A (Ie) | (400 V) 16 A | Rated Operational Current DC-22A (Ie) | (50 V DC) 16 A (200 V DC) 1 A |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
Environmental Information | 2CCC441003C0201 | Short-Circuit Current Rating (SCCR) | 3 kA |
Width in Number of Modular Spacings | 1 | Product Net Width | 18 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
Product Net Weight | 50 g | Built-In Depth (t2) | 68 mm |
ETIM 8 | EC001545 - Main switch for distribution board | ETIM 9 | EC001545 - Main switch for distribution board |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85365053 | UNSPSC | 39122214 |
eClass | V11.0 : 27142301 | IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
Object Classification Code | S | Manufacturer ID | 2CCA703110R0001 |
