Product Model

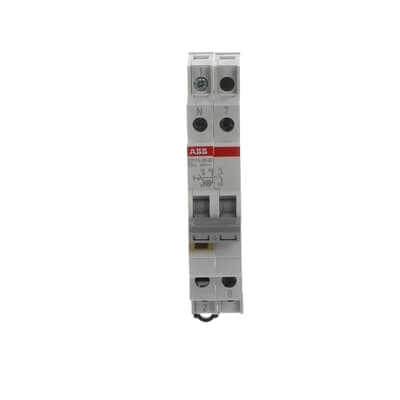

E211X-25-20
Selling Points
- 1Highly Reliable: Built with robust components for consistent performance.
- 2Efficient LED Indication: Easy-to-read yellow LED for clear switch status.
- 3Versatile Usage: Suitable for a wide range of electrical engineering applications.
- 4Compact Design: Compact dimensions (18 mm x 85 mm x 67.5 mm) for easy installation.
- 5Compliant with Standards: Meets DIN EN 60669-1 and VDE 0632 Part 1 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60669-1 EN60669-2-4 IEC/EN60947-3 IEC60068-2-2 IEC60068-2-1 IEC60068-2-30 VDE0632-1 VDE0632-2-4 UL508 | Rated Voltage (Ur) | Minimum 400 V |
Rated Operational Voltage | acc. to EN 250/400 V AC acc. to UL 508 240 V AC | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Auxiliary Voltage AC/DC | LED Indicator 115...250 V AC | Input Voltage Type | AC |
Rated Current (In) | 25 A | Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
Rated Frequency (f) | 50/60 Hz | Minimum Switching Capacity | 24 V AC 25 mA |
Power Watt | 0.18 W | Contact Position Indication | ON / OFF |
Number of Contacts NO | 2 | Number of Main Contacts NC | 0 |
Number of Main Contacts NO | 2 | Number of Auxiliary Contacts CO (SPDT) | 0 |
Number of Poles | 2P | Number of LEDs | 1 |
Tightening Torque | 1.2-1.5 N·m | Utilization Category | Switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A) Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A) |
Lamp Type | LED | Switch Type | Double Interrupting Contacts |
Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
Color | Yellow | Cover Color | Grey |
Control Element Color | Grey | Lamp Color | Yellow |
Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Rated Operational Current AC-22A (Ie) | (400 V) 25 A |
Rated Operational Current DC-22A (Ie) | (50 V DC) 25 A (200 V DC) 2 A | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
Short-Circuit Current Rating (SCCR) | 3 kA | Width in Number of Modular Spacings | 1 |
Product Net Width | 18 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 68 mm | Product Net Weight | 50 g |
Built-In Depth (t2) | 68 mm | ETIM 8 | EC001545 - Main switch for distribution board |
ETIM 9 | EC001545 - Main switch for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
eClass | V11.0 : 27142301 | Object Classification Code | S |
Manufacturer ID | 2CCA703111R0001 |
Specifications may be subject to change without notice
