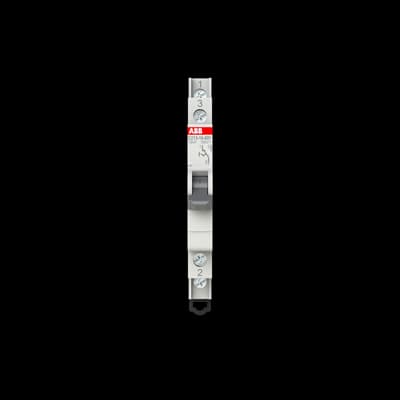

Product Model
E213-16-001
Selling Points
- 1Rated for 16A and 250VAC.
- 2Compliant with EN60669-1 and VDE 0632 Part 1 standards.
- 3Features 1 auxiliary contact (SPDT).
- 4Compact dimensions: 85 mm x 67.5 mm x 9 mm.
- 5Low power loss: 0.82 W.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 | Rated Voltage (Ur) | Minimum 250 V |
Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Input Voltage Type | AC |
Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
Power Loss | 0.32 W | Number of Contacts CO | 1 |
Number of Main Contacts NC | 0 | Number of Main Contacts NO | 0 |
Number of Auxiliary Contacts CO (SPDT) | 1 | Number of Poles | 1P |
Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
Cover Color | Grey | Control Element Color | Grey |
Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
Product Net Weight | 44 g | Built-In Depth (t2) | 68 mm |
ETIM 8 | EC001545 - Main switch for distribution board | ETIM 9 | EC001545 - Main switch for distribution board |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85365053 | UNSPSC | 39122233 |
eClass | V11.0 : 27142301 | IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
Object Classification Code | S | Manufacturer ID | 2CCA703040R0001 |
Specifications may be subject to change without notice
