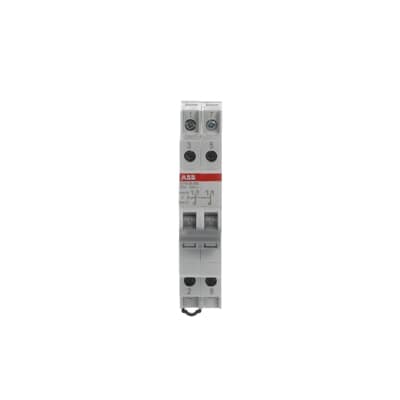

Product Model
E214-25-202
Selling Points
- 1Compliant to EN60669-1 Standards: Meets international safety standards for electrical switches.
- 2High Current Rating: Handles up to 25A for reliable power distribution.
- 3Dual Contacts (2CO): Provides two contact points for enhanced functionality.
- 4Compact Design: Measures 18mm in width, 85mm in height, and 68mm in depth.
- 5Low Power Loss: Operates with minimal power loss of 0.5W for energy efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 | Rated Voltage (Ur) | Minimum 250 V |
Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Input Voltage Type | AC |
Rated Current (In) | 25 A | Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
Rated Frequency (f) | 50/60 Hz | Power Loss | 0.88 W |
Number of Contacts CO | 2 | Number of Main Contacts NC | 0 |
Number of Main Contacts NO | 0 | Number of Auxiliary Contacts CO (SPDT) | 2 |
Number of Poles | 2P | Tightening Torque | 1.2-1.5 N·m |
Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
Remarks | Sealable in the On and Off positions | Cover Color | Grey |
Control Element Color | Grey | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 1 |
Product Net Width | 18 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 68 mm | Product Net Weight | 87 g |
Built-In Depth (t2) | 68 mm | ETIM 8 | EC001545 - Main switch for distribution board |
ETIM 9 | EC001545 - Main switch for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
eClass | V11.0 : 27142301 | Object Classification Code | S |
Manufacturer ID | 2CCA703031R0001 |
Specifications may be subject to change without notice
