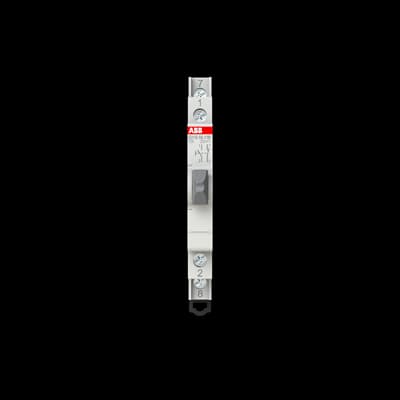

Product Model
E215-16-11B
Selling Points
- 1High current rating of 16A/250VAC for reliable operation.
- 2Dual contacts (1NO+1NC) ensure safe and efficient switching.
- 3Compact design with a width of 9mm for easy DIN rail mounting.
- 4Grey color for clear visibility in industrial settings.
- 5Meets international standards like RoHS and EN60669-1 for quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 48 ... 48 V |
Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Maximum Switching Voltage | 250 V |
Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
Power Loss | 0.5 W | Power Watt | 0.72 W |
Number of Contacts NC | 1 | Number of Contacts NO | 1 |
Number of Main Contacts NC | 1 | Number of Main Contacts NO | 1 |
Number of Auxiliary Contacts CO (SPDT) | 0 | Number of Poles | 2P |
Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
Color | Grey | Control Element Color | Grey |
Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
Product Net Weight | 49 g | Built-In Depth (t2) | 75 mm |
ETIM 8 | EC001546 - Push button for distribution board | ETIM 9 | EC001546 - Push button for distribution board |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85365053 | UNSPSC | 39122216 |
eClass | V11.0 : 27142302 | IDEA Granular Category Code (IGCC) | 5210 >> Push button switch |
Object Classification Code | S | Manufacturer ID | 2CCA703150R0001 |
Specifications may be subject to change without notice
