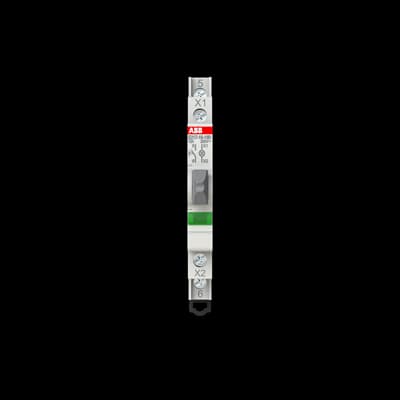

Product Model
E217-16-10D
Selling Points
- 1High Current Rating: Rated for 16A/250VAC, suitable for demanding applications.
- 2Maintenance-Free LED: Green LED indicator with a long-lasting, maintenance-free design.
- 3Compact Design: Module width of 0.5 inches, ideal for DIN rail mounting.
- 4Compliance Standards: Meets EN60669-1 standards for safety and reliability.
- 5Versatile Voltage Range: Operates on 115-250VAC, 12-48VDC, and 110-220VDC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 230 ... 250 V |
Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Voltage Range | 115 ... 250 V AC |
Auxiliary Voltage AC/DC | LED Indicator 115...250 V AC | Maximum Switching Voltage | 250 V |
Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
Power Loss | 1.1 W | Power Watt | 1.1 W |
Number of Contacts NO | 1 | Number of Main Contacts NC | 0 |
Number of Main Contacts NO | 1 | Number of Auxiliary Contacts CO (SPDT) | 0 |
Number of Poles | 1P | Number of LEDs | 1 |
Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
Color | Green | Control Element Color | Grey |
Lamp Color | Green | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 0.5 |
Product Net Width | 9 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 68 mm | Product Net Weight | 53 g |
Built-In Depth (t2) | 68 mm | ETIM 8 | EC001546 - Push button for distribution board |
ETIM 9 | EC001546 - Push button for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
UNSPSC | 39122216 | eClass | V11.0 : 27142302 |
IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board | Object Classification Code | S |
Manufacturer ID | 2CCA703162R0001 |
Specifications may be subject to change without notice
