Product Model

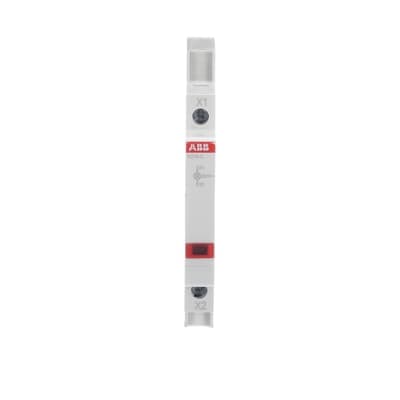

E219-C
Selling Points
- 1Maintenance-Free LEDs: Long-lasting and reliable, ensuring continuous operation without the need for maintenance.
- 2Compact Design: Fits in the smallest spaces with an installation width of 9 mm, perfect for tight electrical enclosures.
- 3Versatile Voltage Range: Operates at 115-250 V AC, making it suitable for various electrical applications.
- 4Red Indicator Light: Clearly signals important states like danger, emergency, or defective conditions.
- 5Compliant with Standards: Meets DIN EN 62094-1 and VDE approvals, ensuring high-quality and safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 250 V |
Rated Operational Voltage | 115 ... 230 V | Rated Insulation Voltage (Ui) | 250 V |
Voltage Range | 115 ... 250 V AC | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Auxiliary Voltage AC/DC | LED Indicator 115...250 V AC | Input Voltage Type | AC |
Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
Power Loss | 0.47-1 W | Power Watt | 0.47 W |
Number of LEDs | 2 | Tightening Torque | 1.2-1.5 N·m |
Lamp Type | LED | Switch Type | Double Interrupting Contacts |
Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
Color | Red | Cover Color | Red |
Lamp Color | Red | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
Service Life | LED Indicator 50000 hour | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
Degree of Protection | IP20 | Environmental Information | 2CCC441002C0201 |
Short-Circuit Current Rating (SCCR) | 3 kA | Width in Number of Modular Spacings | 0.5 |
Product Net Width | 9 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 68 mm | Product Net Weight | 40 g |
Built-In Depth (t2) | 58 mm | ETIM 8 | EC001657 - Indicator light for distribution board |
ETIM 9 | EC001657 - Indicator light for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
UNSPSC | 39121534 | eClass | V11.0 : 27142324 |
IDEA Granular Category Code (IGCC) | 4768 >> Indicator light for distribution board | Object Classification Code | P |
Manufacturer ID | 2CCA703401R0001 |
Specifications may be subject to change without notice
