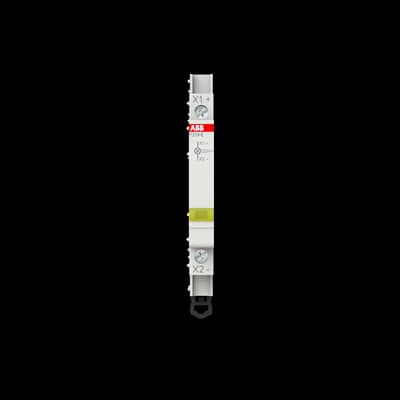

Product Model
E219-E220
Selling Points
- 1Maintenance-free LED indicator for long-lasting performance.
- 2Compatible with 115-250 VACPDC, 12-48 VACDCPDC, and 110-220 VDCPDC.
- 3Compact module width of 0.5 inches for easy installation.
- 4Durable and reliable operation in harsh electrical environments.
- 5Meets EU Directive 2002/95/EC and RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 230 V |
Rated Insulation Voltage (Ui) | 250 V | Voltage Range | 60 ... 220 V DC |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Auxiliary Voltage AC/DC | LED Indicator 60â¦220 V AC |
Input Voltage Type | DC | Rated Current (In) | 16 A |
Rated Frequency (f) | 50/60 Hz | Power Loss | 0.47-1 W |
Power Watt | 1 W | Number of LEDs | 2 |
Tightening Torque | 1.2-1.5 N·m | Lamp Type | LED |
Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
Remarks | Sealable in the On and Off positions | Color | Yellow |
Cover Color | Yellow | Lamp Color | Yellow |
Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Service Life | LED Indicator 50000 hour |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
Environmental Information | 2CCC441002C0201 | Short-Circuit Current Rating (SCCR) | 3 kA |
Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
Product Net Weight | 43 g | Built-In Depth (t2) | 59 mm |
ETIM 8 | EC001657 - Indicator light for distribution board | ETIM 9 | EC001657 - Indicator light for distribution board |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85365053 | eClass | V11.0 : 27142324 |
Object Classification Code | P | Manufacturer ID | 2CCA703408R0001 |
Specifications may be subject to change without notice
