Product Model

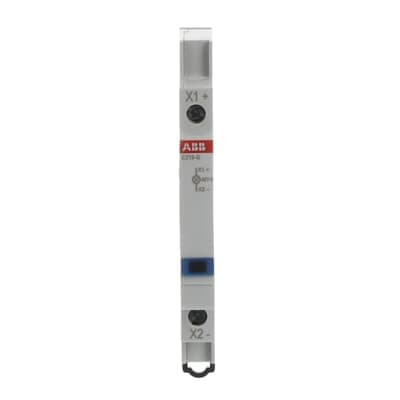

E219-G48
Selling Points
- 1Maintenance-Free LED: Long-lasting and reliable, ensuring continuous operation.
- 2Versatile Voltage Range: Compatible with 12-48V AC/DC, making it suitable for various industrial settings.
- 3Durable Design: Built to withstand harsh environments with a service life of up to 50,000 hours.
- 4Easy Installation: Simple mounting options, including DIN rail and panel mount configurations.
- 5High-Quality Construction: Meets international standards like EN 62094-1 and UL508 for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 48 V |
Rated Operational Voltage | 115 ... 230 V | Rated Insulation Voltage (Ui) | 250 V |
Voltage Range | 12 ... 48 V AC/DC | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Auxiliary Voltage AC/DC | LED Indicator 12â¦48 V AC | Input Voltage Type | AC/DC |
Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
Power Loss | 0.47-1 W | Power Watt | 0.47 W |
Number of LEDs | 2 | Tightening Torque | 1.2-1.5 N·m |
Lamp Type | LED | Switch Type | Double Interrupting Contacts |
Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
Color | Blue | Cover Color | Blue |
Lamp Color | Blue | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
Service Life | LED Indicator 50000 hour | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
Degree of Protection | IP20 | Environmental Information | 2CCC441002C0201 |
Short-Circuit Current Rating (SCCR) | 3 kA | Width in Number of Modular Spacings | 0.5 |
Product Net Width | 9 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 68 mm | Product Net Weight | 43 g |
Built-In Depth (t2) | 59 mm | ETIM 8 | EC001657 - Indicator light for distribution board |
ETIM 9 | EC001657 - Indicator light for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
eClass | V11.0 : 27142324 | Object Classification Code | P |
Manufacturer ID | 2CCA703424R0001 |
Specifications may be subject to change without notice
