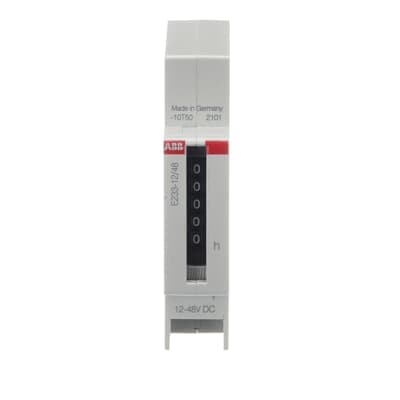

Product Model
E233-12/48
Selling Points
- 1Accurate Time Measurement: Measures up to 99,999 hours with high precision.
- 2DIN Rail Mounting: Designed for easy installation on DIN rail systems.
- 3Versatile Power Supply: Compatible with 12-48V DC supply voltage.
- 4Compact Design: Dimensions: 17.5x85x58mm, ideal for space-constrained applications.
- 5Compliant with Safety Standards: Meets EU Directive 2002/95/EC and IP20 rating for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage (Ur) | 12 ... 48 V DC | Rated Frequency (f) | 50 / 60 Hz |
Power Loss | 0.02 W | Accuracy | Reading Accuracy Class 0,01 h |
Environmental Information | 2CDU400019D0201 | Width in Number of Modular Spacings | 1.0 |
Product Net Width | 17.5 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 58 mm | Product Net Weight | 0.05 kg |
ETIM 8 | EC001641 - Hour meter | ETIM 9 | EC001641 - Hour meter |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 9029 10 00 | UNSPSC | 41111901 |
eClass | V11.0 : 27142313 | IDEA Granular Category Code (IGCC) | 6132 >> Counters |
Object Classification Code | P | Manufacturer ID | 2CDE300010R1601 |
Specifications may be subject to change without notice
