Product Model
E233-24
Selling Points

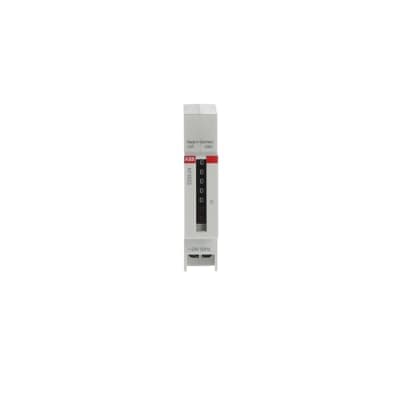

- 1Accurate Operating Hours Tracking: The ABB E233-24 Operating Hours Counter 24VAC provides precise tracking of operating hours with its reliable LCD display.
- 2Compact Design: With dimensions of 85 mm x 58 mm x 17.5 mm, this counter is designed to fit seamlessly into any control panel.
- 3Easy Installation: The top-hat rail mounting style makes installation straightforward and efficient.
- 4Durable Construction: Built with high-quality materials, this counter offers robust protection against environmental factors (IP20).
- 5Versatile Application: Suitable for a wide range of applications, including energy monitoring in industrial settings and commercial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage (Ur) | 24 V AC | Voltage Range | 21 ... 27 V |
Rated Frequency (f) | 50 / 60 Hz | Power Loss | 1.5 W |
Accuracy | Reading Accuracy Class 0,01 h | Mounting Type | DIN-Rail |
Environmental Information | 2CDU400019D0201 | Width in Number of Modular Spacings | 1.0 |
Product Net Width | 17.5 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 58 mm | Product Net Weight | 0.05 kg |
ETIM 8 | EC001641 - Hour meter | ETIM 9 | EC001641 - Hour meter |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 9029 10 00 | eClass | V11.0 : 27142313 |
Object Classification Code | P | Manufacturer ID | 2CDE400000R1601 |
Specifications may be subject to change without notice
