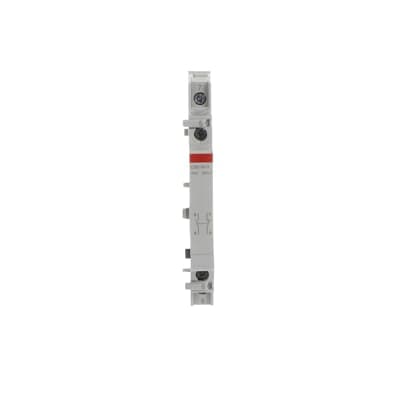

Product Model
E292-16-11
Selling Points
- 1Electromagnetic Operation: The E292-16-11 operates electromagnetically, ensuring efficient and reliable lighting control.
- 2DIN Rail Mounting: Designed for easy installation on DIN rails, making it versatile for various applications.
- 3Rated Currents: Supports rated currents of 16 and 32A, suitable for a wide range of lighting control needs.
- 4Impulse Button Control: Controlled by impulse buttons, allowing lighting to be operated from multiple places.
- 5Compliant with EU Directives: Meets EU Directive 2011/65/EU and Amendment 2015/863, ensuring RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Mechanical latching relay main contact module |
Rated Voltage (Ur) | 250 V AC | Rated Control Supply Voltage (Us) | 250 V AC |
Rated Current (In) | 16 A | Maximum Control Current DC | 8 A |
Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
Power Loss | 0.32 W | Number of Contacts NC | 1 |
Number of Contacts NO | 1 | Number of Main Contacts NC | 1 |
Number of Main Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 1 | Tightening Torque | 1.2 - 1.5 N·m |
Accessory Type | Connecting bridge | Mounting Type | DIN-Rail |
RAL Number | RAL 7035 - Light Grey | Color | Grey |
Connecting Capacity | Solid 1 x 1 ... 10 mm² Flexible 2 x 2.5 mm² Flexible with Cable End 1 x 0.75 ... 6 mm² Flexible with Cable Lug 1 x 0.75 ... 6 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
Environmental Information | 2CCC441012D0202 | Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens |
Product Net Width | 9 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC000188 - Latching relay |
ETIM 9 | EC000188 - Latching relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85362020 |
eClass | V11.0 : 27371692 | Object Classification Code | K |
Manufacturer ID | 2CCA704301R0001 |
Specifications may be subject to change without notice
