Product Model

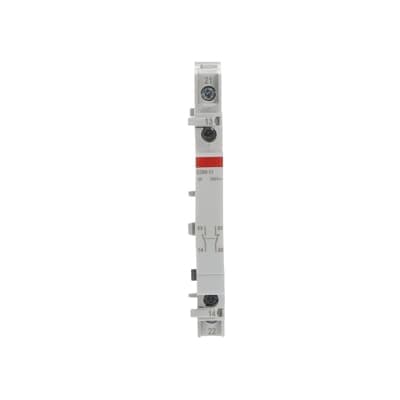

E299-11
Selling Points
- 1Designed for DIN rail mounting, ensuring easy installation in industrial settings.
- 2Features 1NO+1NC configuration, providing reliable contact switching.
- 3Operates at a current rating of 5A, suitable for a wide range of applications.
- 4Compatible with the E297 relay series, offering flexibility in system integration.
- 5Meets EU Directive 2002/95/EC standards, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Auxiliary Contact |
Rated Voltage (Ur) | 250 V AC | Maximum Control Current DC | 5 A |
Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
Power Loss | 0.1 W | Number of Contacts NC | 1 |
Number of Contacts NO | 1 | Number of Main Contacts NC | 0 |
Number of Main Contacts NO | 0 | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 1 | Tightening Torque | 1.2 - 1.5 N·m |
Accessory Type | Other | Mounting Type | DIN-Rail |
RAL Number | RAL 7035 - Light Grey | Color | Grey |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Environmental Information | 2CCC441012D0202 |
Product Net Width | 18 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC001652 - Installation relay |
ETIM 9 | EC001652 - Installation relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85362020 |
eClass | V11.0 : 27371692 | Object Classification Code | K |
Manufacturer ID | 2CCA704340R0001 |
Specifications may be subject to change without notice
