Product Model

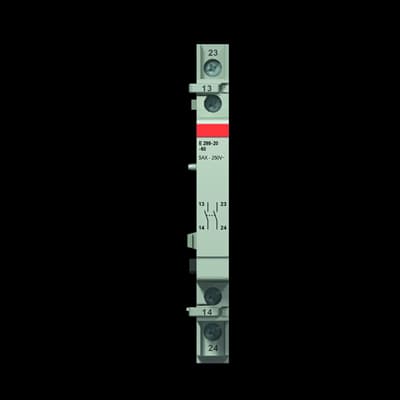

E299-20-60
Selling Points
- 1Meets IEC/EN 60947-3 standards for wide voltage and current ratings.
- 2VDE/CCC/EAC/KEMA approved for global use.
- 3Laser-printed devices ensure consistent optical appearance in distribution boards.
- 4Compatible with MCBs and RCDs using busbars, ideal for cross-wiring.
- 5Rated for 20,000 operational cycles (AC) and 1,500 operational cycles (DC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 60669-1 IEC 60669-2-2 | Function | Auxiliary Contact |
Supply Voltage | 250 ⦠250 V | Rated Control Supply Voltage (Us) | 250 V AC |
Input Voltage Type | AC | Rated Current (In) | 5 A |
Current Rating, Main Switch | 5 A | Maximum Control Current DC | 5 A |
Frequency (f) | Control Voltage 1 60 Hz | Rated Frequency (f) | 60 Hz |
Minimum Switching Capacity | 24 V 10 mA | Power Loss | 0.6 W |
Number of Contacts NO | 2 | Number of Main Contacts NC | 0 |
Number of Main Contacts NO | 0 | Number of Auxiliary Contacts NO | 2 |
Tightening Torque | 1.2 - 1.5 N·m | Mounting Type | DIN-Rail |
RAL Number | RAL 7035 - Light Grey | Color | Grey |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Width in Number of Modular Spacings | 0.5 |
Product Net Width | 9 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC000188 - Latching relay |
ETIM 9 | EC000188 - Latching relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85364930 |
eClass | V11.0 : 27142306 | Object Classification Code | K |
Manufacturer ID | 2CCA704343R0001 |
Specifications may be subject to change without notice
