Product Model

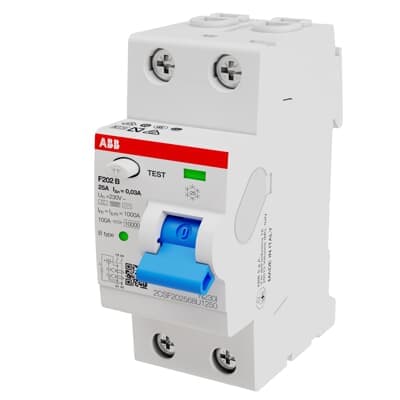

F202 B-25/0.03 U
Selling Points
- 1Advanced Earth Fault Protection: Safeguards against sinusoidal alternating and direct pulsating earth fault currents.
- 2High Trip Sensitivity: 30mA trip sensitivity ensures quick response to potential hazards.
- 3Versatile Applications: Suitable for residential, commercial, and industrial settings.
- 4Durable Construction: Built with failsafe bi-directional cylinder-lift terminals for secure connections.
- 5Compliance with Standards: Meets IEC/EN 61008-1 and IEC/EN 61008-2-1 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
Rated Voltage (Ur) | 230 V | Rated Operational Voltage | 230 V AC |
Rated Insulation Voltage (Ui) | 440 V | Test Voltage (Ut) | 170 ... 253 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2500 V |
Input Voltage Type | AC | Rated Current (In) | 25 A |
Rated Residual Current | 30 mA | Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A |
Impulse Current | I (max, 8 / 20 µs) 3000 A | Maximum Surge Current | 3 kA |
Leakage Current Type | B | Frequency (f) | 50/60 Hz |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | Total 1.6 W at Rated Operating Conditions per Pole 0.65 W |
Electrical Endurance | 10000 cycle | Mechanical Endurance | 20000 cycle |
Number of Poles | 2 | Number of Modular Spacings per DIN Rail | 2 |
Operating Characteristic | Instantaneous (APR High Immunity) | Overvoltage Category | III |
Tightening Torque | 2.8 N·m | Delay Time (<span style="font-size:9.0pt;font-family:'Arial',sans-serif;color:#333333;background:white;">τ</span>) | 10 ms |
Accessory Type | Auxiliary contact Signal contact/auxiliary contact Shunt trip Undervoltage release Overvoltage release Motor operating device Auto reclosing unit | Actuator Type | Toggle - Insulation group I - II, RAL 5015 |
Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Options Provided | Unpacked |
Mounting Position | Any | Accessories Available | Yes |
Number of Batteries | 0 | Cable Size | 25 mm² |
Connecting Capacity | Busbar 10 mm² Flexible 1 ... 25 mm² Stranded 1 ... 25 mm² | Rated Cross-Section | 1 - Solid-Core 1 ... 25 mm² |
Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
Ambient Air Temperature | Operation -25...+70 °C Storage -40â¦+70 °C | Degree of Protection | Terminals IP20 Housing IP40 |
Pollution Degree | 2 | Environmental Conditions | 28 cycle with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Width in Number of Modular Spacings | 2 | Product Net Width | 35 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
Product Net Weight | 220 g | Built-In Depth (t2) | 69 mm |
Dimension Diagram | 9AKK106354A0758 | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
Object Classification Code | F | Manufacturer ID | 2CSF202568U1250 |
