Product Model

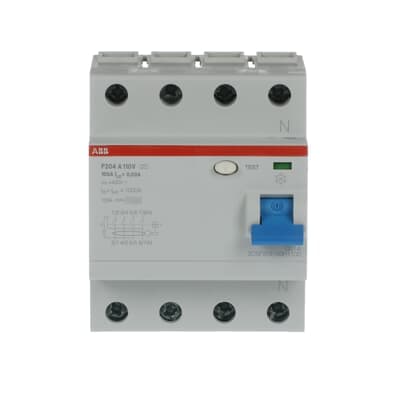

F204 A-100/0.03 110V
Selling Points
- 1Protects against indirect and direct earth fault currents with a sensitivity of 30 mA.
- 2Suitable for residential, commercial, and industrial settings.
- 3DIN-Rail mounting type with a compact footprint.
- 4Meets IEC/EN 61008 and UL 1053 standards for reliability.
- 5Includes busbar options for flexible wiring configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61008 UL 1053 | Type of Residual Current | Type A |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 110-254 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
Rated Current (In) | 100 A | Rated Residual Current | 30 mA |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Leakage Current Type | A |
Frequency (f) | 50/60 Hz | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | at Rated Operating Conditions per Pole 8.2 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 4 |
Number of Modular Spacings per DIN Rail | 4 | Operating Characteristic | Instantaneous |
Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
Accessory Type | Auxiliary contact Signal / auxiliary contact Shunt trip Auto re-closing units Motor operating device Overvoltage release Undervoltage release | Mounting Type | DIN-Rail |
Options Provided | None, Suitable for 110V applications | Mounting Position | Any |
Accessories Available | Yes | Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² |
Rated Cross-Section | 4 - Multi-Wired 0...35 mm² 1 - Solid-Core 35...35 mm² | Wire Stripping Length | Top 12.7 mm Bottom 14.9 mm |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ... 55 °C Storage -40 ... 70 °C |
Degree of Protection | IP2X | Pollution Degree | 2 |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | Refer to RoHS | Maximum Operating Voltage UL/CSA | 480Y / 277 V AC |
Short-Circuit Current Rating (SCCR) | 30 mA | Width in Number of Modular Spacings | 4 |
Product Net Width | 70 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 380 g |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
UNSPSC | 39121601 | eClass | V11.0 : 27142201 |
IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
Manufacturer ID | 2CSF204199R1100 |
Specifications may be subject to change without notice
