Product Model

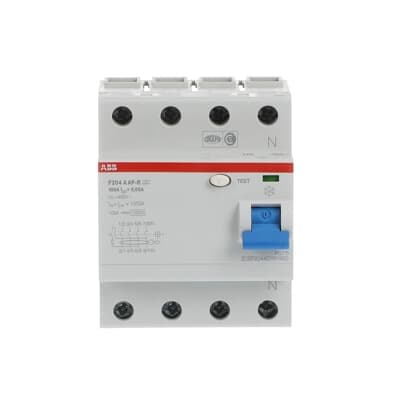

F204 A-100/0.03 AP-R
Selling Points
- 1Advanced Leakage Protection: Safeguards against fault currents to earth with a 30mA trip sensitivity.
- 2Durable Design: Built-in depth of 69 mm and rated for 400V, 500V insulation voltage.
- 3High Short-Circuit Capacity: Handles 1 kA short-circuit breaking capacity and 3 kA surge current.
- 4Versatile Mounting: Compatible with DIN rail mounting for easy installation.
- 5Comprehensive Safety Features: Includes interlocking device and short-time delayed tripping for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008 UL 1053 | Type of Residual Current | Type A |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 170-254 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
Rated Current (In) | 100 A | Rated Residual Current | 30 mA |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Maximum Surge Current | 3 kA |
Leakage Current Type | A | Frequency (f) | 50/60 Hz |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | at Rated Operating Conditions per Pole 8.2 W |
Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
Operating Characteristic | Instantaneous (APR High Immunity) | Position of Neutral Terminals | Right |
Tightening Torque | 2.8 N·m | Accessory Type | Auxiliary contact Signal / auxiliary contact Shunt trip Auto re-closing units Motor operating device Overvoltage release Undervoltage release |
Mounting Type | DIN-Rail | Options Provided | None |
Mounting Position | Any | Accessories Available | Yes |
Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...35 mm² 1 - Solid-Core 35...35 mm² |
Wire Stripping Length | Top 12.7 mm Bottom 14.9 mm | Terminal Type | Screw Terminals |
Ambient Air Temperature | Operation -25 ... 55 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
Maximum Operating Voltage UL/CSA | 480Y / 277 V AC | Short-Circuit Current Rating (SCCR) | 30 mA |
Width in Number of Modular Spacings | 4 | Product Net Width | 70 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
Product Net Weight | 380 g | Built-In Depth (t2) | 69 mm |
ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | UNSPSC | 39121601 |
eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
Object Classification Code | F | Manufacturer ID | 2CSF204401R1900 |
