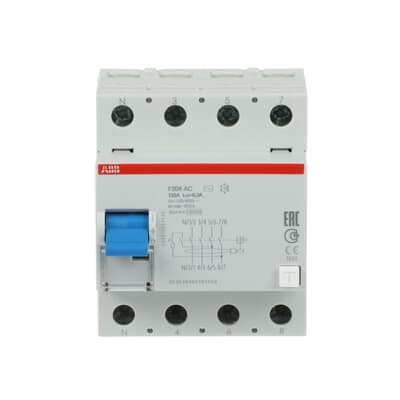

Product Model
F204 AC-125/0.3-L
Selling Points
- 1Advanced Protection: Offers selective and instantaneous protection against earth fault currents.
- 2High Current Rating: Rated for 125 A, suitable for high-power applications.
- 3Compact Design: Dimensions: 0.072 m width, 0.085 m height, 0.069 m depth, and 0.500 kg weight.
- 4Compliance Standards: Meets IEC/EN 61008 standards for electrical safety.
- 5Easy Installation: Mounts on DIN rail for easy integration into electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008 | Type of Residual Current | Type AC |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 200-440 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
Rated Current (In) | 125 A | Rated Residual Current | 300 mA |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Maximum Surge Current | 0.25 kA |
Leakage Current Type | AC | Frequency (f) | 50/60 Hz |
Rated Frequency (f) | 50 Hz | Power Loss | at Rated Operating Conditions per Pole 7.5 W |
Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
Operating Characteristic | Instantaneous | Position of Neutral Terminals | Left |
Tightening Torque | 2.8 N·m | Accessory Type | Signal/Auxiliary contact Motor operating device |
Mounting Type | DIN-Rail | Options Provided | None |
Mounting Position | Any | Accessories Available | Yes |
Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 35...35 mm² |
Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
Ambient Air Temperature | Operation -25 ... 40 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
Pollution Degree | 2 | Environmental Information | Refer to RoHS |
Short-Circuit Current Rating (SCCR) | 300 mA | Width in Number of Modular Spacings | 4 |
Product Net Width | 72 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69.5 mm | Product Net Weight | 500 g |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
Object Classification Code | F | Manufacturer ID | 2CSF204023R3950 |
Specifications may be subject to change without notice
