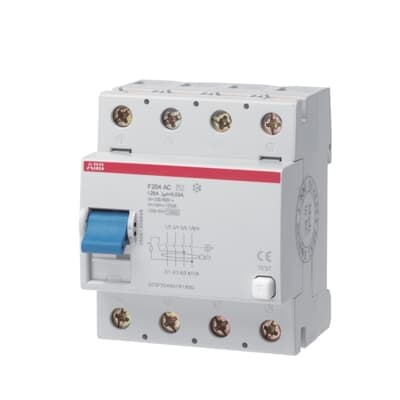

Product Model
F204 A S-125/0.5
Selling Points
- 1The F204 A S-125/0.5 provides robust protection against fault currents to earth, ensuring safety in electrical installations.
- 2Offers both selective and instantaneous protection modes, catering to various AC applications.
- 3Compact dimensions (0.072 m width, 0.085 m height, 0.069 m depth) make it suitable for DIN rail mounting.
- 4Meets IEC/EN 61008 standards with a rated current of 125 A and a rated residual current of 500 mA.
- 5Built to withstand harsh environments with an operating temperature range of -25°C to 40°C and an IP2X degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008 | Type of Residual Current | Type A |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 100-250 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
Rated Current (In) | 125 A | Rated Residual Current | 500 mA |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Maximum Surge Current | 5 kA |
Leakage Current Type | A | Frequency (f) | 50/60 Hz |
Rated Frequency (f) | 50 Hz | Power Loss | at Rated Operating Conditions per Pole 7.5 W |
Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
Operating Characteristic | Selective | Position of Neutral Terminals | Right |
Tightening Torque | 2.8 N·m | Accessory Type | Signal/Auxiliary contact Motor operating device |
Mounting Type | DIN-Rail | Options Provided | None |
Mounting Position | Any | Accessories Available | Yes |
Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 35...35 mm² |
Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
Ambient Air Temperature | Operation -25 ... 40 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
Pollution Degree | 2 | Environmental Information | Refer to RoHS |
Short-Circuit Current Rating (SCCR) | 500 mA | Width in Number of Modular Spacings | 4 |
Product Net Width | 72 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69.5 mm | Product Net Weight | 500 g |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
Object Classification Code | F | Manufacturer ID | 2CSF204201R4950 |
Specifications may be subject to change without notice
