Product Model

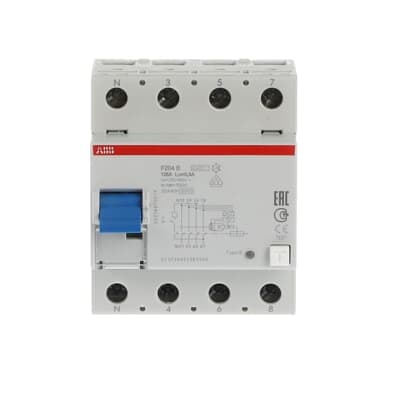

F204 B-125/0.3-L
Selling Points
- 1High Protection Against Smooth D.C. Earth Fault Currents
- 2Selective Operation for Enhanced Safety
- 3Rated Current: 125 A with 300 mA Residual Current
- 4Compliant with EN 61008 Standards for Reliable Performance
- 5Compact Design with Dimensions: 0.072 m x 0.085 m x 0.069 m
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
Rated Insulation Voltage (Ui) | 400 V | Test Voltage (Ut) | 200â¦440 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
Rated Current (In) | 125 A | Rated Residual Current | 300 mA |
Rated Conditional Short-Circuit Current (Inc) | 10 kA | Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
Maximum Surge Current | 5 kA | Leakage Current Type | B |
Frequency (f) | 50 Hz | Rated Frequency (f) | 50 Hz |
Power Loss | Total 35.8 W at Rated Operating Conditions per Pole 11.2 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 2000 cycle | Number of Poles | 4 |
Number of Modular Spacings per DIN Rail | 4 | Operating Characteristic | Instantaneous (APR High Immunity) |
Position of Neutral Terminals | Left | Tightening Torque | 3 N·m |
Accessory Type | Signal/Auxiliary contact Motor operating device | Actuator Type | Toggle - Insulation group I - II, RAL 5018 |
Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
Options Provided | None | Accessories Available | Yes |
Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 50â¦50 mm² |
Ambient Air Temperature | Operation -25 ... 40 °C Storage -40 ... 70 °C | Degree of Protection | Terminals IP20 Housing IP40 |
Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
Short-Circuit Current Rating (SCCR) | 300 mA | Width in Number of Modular Spacings | 4 |
Product Net Width | 72 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 75 mm | Product Net Weight | 500 g |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
UNSPSC | 39121601 | eClass | V11.0 : 27142201 |
IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
Manufacturer ID | 2CSF204523R3950 |
Specifications may be subject to change without notice
