Product Model

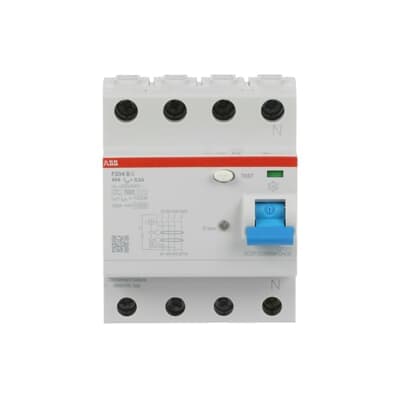

F204 B S-40/0.3
Selling Points
- 1Meets IEC and EN standards for safety and reliability.
- 2Provides selective protection against fault currents to earth, ensuring safety without unnecessary interruptions.
- 3Withstands surge currents up to 3 kA, ensuring robust operation under various conditions.
- 4Designed for long-term use with a mechanical endurance of 20000 cycles and electrical endurance of 10000 cycles.
- 5Mounts easily on DIN rail, making it a convenient solution for various electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 ⦠400 V AC |
Rated Insulation Voltage (Ui) | 440 V | Test Voltage (Ut) | 110 ... 253 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2500 V |
Input Voltage Type | AC | Rated Current (In) | 40 A |
Rated Residual Current | 300 mA | Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A |
Impulse Current | I (max, 8 / 20 µs) 5000 A | Maximum Surge Current | 5 kA |
Leakage Current Type | B | Frequency (f) | 50/60 Hz |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | Total 6.96 W at Rated Operating Conditions per Pole 1.92 W |
Electrical Endurance | 10000 cycle | Mechanical Endurance | 20000 cycle |
Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
Operating Characteristic | Selective | Overvoltage Category | III |
Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
Delay Time (<span style="font-size:9.0pt;font-family:'Arial',sans-serif;color:#333333;background:white;">τ</span>) | 10 ms | Accessory Type | Auxiliary contact Signal contact/auxiliary contact Shunt trip Undervoltage release Overvoltage release Motor operating device Auto reclosing unit |
Actuator Type | Toggle - Insulation group I - II, RAL 5015 | Housing Type | Insulation group I - II, RAL 7035 |
Mounting Type | DIN-Rail | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
Options Provided | None | Mounting Position | Any |
Accessories Available | Yes | Number of Batteries | 0 |
Cable Size | 25 mm² | Connecting Capacity | Busbar 10 mm² Flexible 1 ... 25 mm² Stranded 1 ... 25 mm² |
Rated Cross-Section | 1 - Solid-Core 1 ... 25 mm² | Wire Stripping Length | 12 mm |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25...+65 °C Storage -40â¦+70 °C |
Degree of Protection | Terminals IP20 Housing IP40 | Pollution Degree | 2 |
Environmental Conditions | 28 cycle with 55 °C / 90-96 % and 25 °C / 95-100 % | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Width in Number of Modular Spacings | 4 |
Product Net Width | 70 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 380 g |
Built-In Depth (t2) | 69 mm | Dimension Diagram | 9AKK106354A0759 |
ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | UNSPSC | 39121601 |
eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
Object Classification Code | F | Manufacturer ID | 2CSF204868R3400 |
