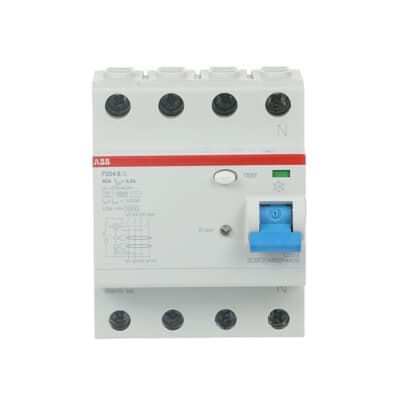

Product Model
F204 B S-40/0.5
Selling Points
- 1Advanced Fault Protection: Provides comprehensive protection against sinusoidal alternating currents, pulsating currents, and smooth DC residual currents to earth.
- 2Selective Protection: Offers selective protection for non-linear circuits that can generate fault currents with smooth DC fault currents and high frequencies.
- 3High Surge Current Capacity: Resistant to surge currents up to 3 kA (5 kA selective version), ensuring reliable operation under various electrical conditions.
- 4Compact Design: Built-in depth of 69 mm, suitable for DIN rail mounting, making it ideal for space-constrained installations.
- 5Wide Application Range: Suitable for household, commercial, and industrial applications, including electronic equipment like frequency converters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 ⦠400 V AC |
Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 110 ... 253 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2500 V |
Input Voltage Type | AC | Rated Current (In) | 40 A |
Rated Residual Current | 500 mA | Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A |
Maximum Surge Current | 5 kA | Leakage Current Type | B |
Frequency (f) | 50/60 Hz | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | Total 9.26 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 4 |
Number of Modular Spacings per DIN Rail | 4 | Operating Characteristic | Selective |
Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
Accessory Type | Auxiliary contact Signal contact/auxiliary contact Shunt trip Undervoltage release Overvoltage release Motor operating device Auto reclosing unit | Actuator Type | Toggle - Insulation group I - II, RAL 5015 |
Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Options Provided | None |
Accessories Available | Yes | Cable Size | 25 mm² |
Connecting Capacity | Busbar 10 mm² Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 25...25 mm² |
Wire Stripping Length | 12 mm | Ambient Air Temperature | Operation -25...+65 °C Storage -40â¦+70 °C |
Degree of Protection | Terminals IP20 Housing IP40 | Pollution Degree | 2 |
Environmental Conditions | 28 cycle with 55 °C / 90-96 % and 25 °C / 95-100 % | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
Short-Circuit Current Rating (SCCR) | 500 mA | Width in Number of Modular Spacings | 4 |
Product Net Width | 70 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 380 g |
Built-In Depth (t2) | 69 mm | Dimension Diagram | 9AKK106354A0759 |
ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | eClass | V11.0 : 27142201 |
IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
Manufacturer ID | 2CSF204892R4400 |
Specifications may be subject to change without notice
