Product Model

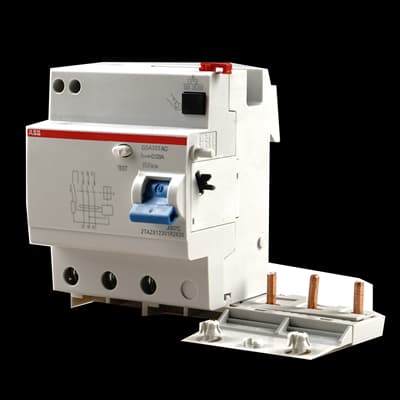

GDA203 A-63/0.03 AP-R
Selling Points
- 1Advanced Arc Fault Detection: The GDA203 A-63/0.03 AP-R detects arc faults, ensuring early intervention to prevent electrical fires.
- 2High Sensitivity: With a sensitivity of 0.03, this RCD-block provides enhanced protection against electrical hazards.
- 3Compact Design: Its compact size makes it ideal for various electrical installations, including residential and commercial settings.
- 4High Current Rating: Capable of handling up to 63A, making it suitable for a wide range of applications.
- 5Reliable Performance: Built with high-quality components, ensuring consistent and reliable performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of Residual Current | Type A | Rated Voltage (Ur) | 230...400 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 63 A | Rated Residual Current | 30 mA |
Maximum Surge Current | 3 kA | Leakage Current Type | A |
Rated Frequency (f) | 50 ⦠60 Hz | Number of Poles | 3 |
Operating Characteristic | Instantaneous (APR High Immunity) | Connecting Capacity | Rigid 25 ⦠25 mm² Flexible 25 ⦠25 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Pollution Degree | 2 |
Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Product Net Width | 0.122 m |
Product Net Height | 0.093 m | Product Net Depth / Length | 0.069 m |
Product Net Weight | 0.26 kg | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2TAZ810305R2630 |
Specifications may be subject to change without notice
