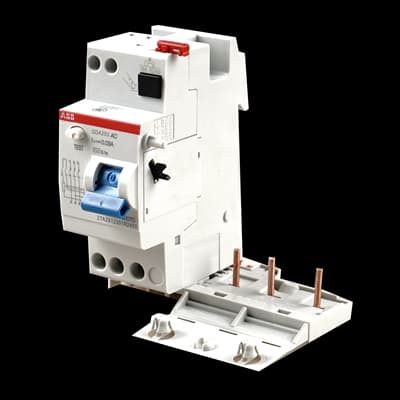

Product Model
GDA203 A S-40/0.1
Selling Points
- 1Advanced Residual Current Protection: Provides Type A residual current protection for enhanced safety.
- 2Wide Voltage Range: Operates within a rated voltage of 400V, ensuring compatibility with diverse electrical systems.
- 3High Insulation Voltage: Rated insulation voltage of 500V for robust electrical insulation.
- 4Impulse Withstand Voltage: Designed to withstand high impulse voltages, ensuring durability in harsh environments.
- 5Certified for Excellence: Tested and certified by experienced authorities, guaranteeing top-notch quality and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of Residual Current | Type A | Rated Voltage (Ur) | 400...400 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 40 A | Rated Residual Current | 100 mA |
Maximum Surge Current | 3 kA | Leakage Current Type | A |
Rated Frequency (f) | 50 ⦠60 Hz | Number of Poles | 3 |
Operating Characteristic | Selective | Connecting Capacity | Rigid 16 ⦠16 mm² Flexible 16 ⦠16 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Pollution Degree | 2 |
Short-Circuit Current Rating (SCCR) | 0.1 ... 0.1 A | Product Net Width | 0.087 m |
Product Net Height | 0.093 m | Product Net Depth / Length | 0.069 m |
Product Net Weight | 0.149 kg | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2TAZ810306R3400 |
Specifications may be subject to change without notice
