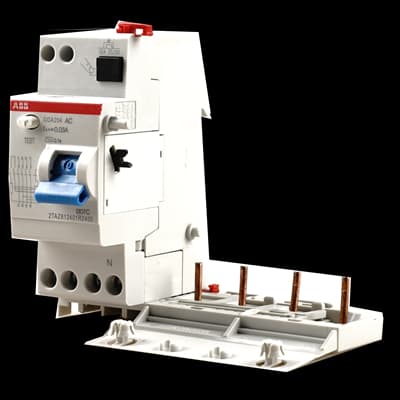

Product Model
GDA204 AC S-40/0.3
Selling Points
- 1Advanced Protection Technology: Features advanced protection technology for reliable operation in various electrical environments.
- 2Comprehensive Compliance: Meets international standards such as GB14048.6-2008, IEC60947-1, and UL508 for global compatibility.
- 3Enhanced Safety: Designed with safety in mind, ensuring protection against electrical faults and overcurrents.
- 4Versatile Configuration: Available in different configurations to suit various application needs, including AC and DC systems.
- 5Long-Lasting Durability: Built with high-quality materials for extended durability and minimal maintenance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of Residual Current | Type AC | Rated Voltage (Ur) | 230...400 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 40 A | Rated Residual Current | 300 mA |
Maximum Surge Current | 3 kA | Leakage Current Type | AC |
Rated Frequency (f) | 50 ⦠60 Hz | Number of Poles | 4 |
Operating Characteristic | Selective | Connecting Capacity | Rigid 16 ⦠16 mm² Flexible 16 ⦠16 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Pollution Degree | 2 |
Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A | Product Net Width | 0.105 m |
Product Net Height | 0.093 m | Product Net Depth / Length | 0.069 m |
Product Net Weight | 0.164 kg | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
eClass | V11.0 : 27142210 | Object Classification Code | F |
Manufacturer ID | 2TAZ810403R4400 |
Specifications may be subject to change without notice
