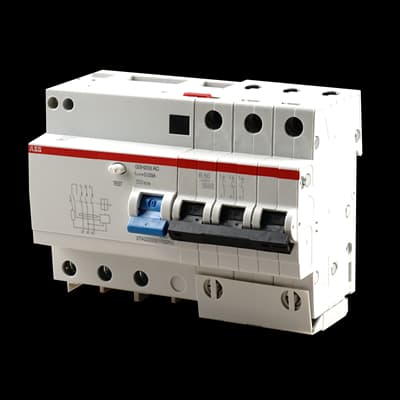

Product Model
GSH203 A-B63/0.1 AP-R
Selling Points
- 16kA breaking capacity ensures reliable operation in various electrical environments.
- 2Integrated overcurrent and residual current protection for enhanced safety.
- 3Suitable for residential, commercial, and industrial settings.
- 4Type A AP-R provides high immunity to unwanted tripping, ensuring consistent performance.
- 5Meets IEC 61009-1 and GB/T 16917.1 standards for global compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61009 GB 16917 | Tripping Characteristic | B |
Type of Residual Current | Type A | Rated Operational Voltage | 400 V AC |
Rated Current (In) | 63 A | Rated Residual Current | 100 mA |
Rated Short-Circuit Capacity | 6 kA | Maximum Breaking Capacity | 6 kA |
Number of Protected Poles | 3 | Number of Poles | 3 |
Number of Earth Leakage Circuit Breakers (ELCBs) | 1 | Operating Characteristic | Instantaneous (APR High Immunity) |
Release Type | B | Short-Circuit Current Rating (SCCR) | 100 mA |
Product Net Width | 70 mm | Product Net Height | 0.093 m |
Product Net Depth / Length | 69 mm | Product Net Weight | 0.59 kg |
ETIM 8 | EC002281 - Distributor assembly with combination RCCB/MCB | ETIM 9 | EC002281 - Distributor assembly with combination RCCB/MCB |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363010 | eClass | V11.0 : 27400618 |
Object Classification Code | F | Manufacturer ID | 2TAZ222305R3635 |
Specifications may be subject to change without notice
