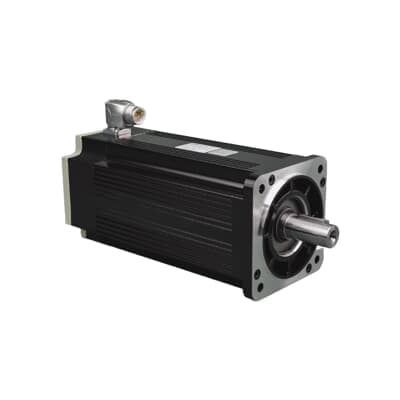

Product Model
HDS130-1226BD4KNS
Selling Points
- 1High torque up to 12 Nm for demanding applications.
- 2Versatile feedback options including Hiperface DSL and SmartAbs.
- 3Robust design with a 400VAC power rating for reliable performance.
- 4Available with a brake option for secure operation.
- 5Compatible with various cable lengths and configurations for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ABB Type Designation | HDS130-1226BD4KNS | CN8 | 85044088 |
Country of Origin | Finland (FI) | Customs Tariff Number | 8501520000 |
Degree of Protection | IP65 | Flange Size Range | 130 mm |
Frame Size | A | Global Commercial Alias | HDS130-1226BD4KNS |
Gross Weight | 9.4 kg | Input Voltage (Uin) | 400 V |
Invoice Description | HDS series motor, 400 VAC, flange size 130 mm, low inertia, 2.6 kW, multi-turn Hiperface, key, no brake, seal | Made To Order | No |
Maximum Peak Current | 30.6 A | Maximum Peak Torque | 36 N·m |
Maximum Speed | 4000 r/min | Minimum Order Quantity | 1 piece |
Motor Power AC-3 | 2.6 kW | Number of Phases | 3 |
Order Multiple | 1 piece | Package Level 1 Depth / Length | 380 mm |
Package Level 1 Height | 231 mm | Package Level 1 Units | 1 carton |
Package Level 1 Width | 190 mm | Product Name | HDS motor |
Product Net Depth / Length | 283 mm | Product Net Height | 170 mm |
Product Net Weight | 8.75 kg | Product Net Width | 130 mm |
Product Type | HDS_servo_motor | Quote Only | No |
Rated Output Current | 9.5 A | Rated Speed | 2000 r/min |
Rated Torque | 12 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
Selling Unit of Measure | piece | Shaft Diameter | 24 mm |
Shaft Length | 50 mm | Short Description | HDS series motor, 400 VAC, flange size 130 mm, low inerita, 2.6 kW, multi-turn Hiperface, key, no brake, seal |
Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00049478 |
Specifications may be subject to change without notice
